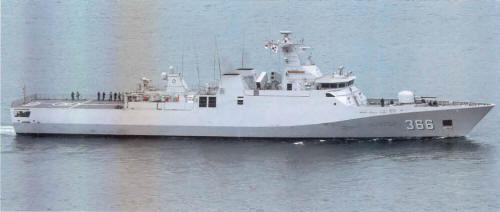

Sultan Hasanuddin 2008 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Diponegoro (ex-Gajah Mada)	365	397	Damen-Schelde, Vlissingen, Netherlands	24.3.2005	16.9.2006	5.7.2007	in service (2019)
Sultan Hasanuddin (ex-Balaputera)	366	398	Damen-Schelde, Vlissingen, Netherlands	24.3.2005	12.2006	24.11.2007	in service (2019)
Sultan Iskandar Muda	367	399	Damen-Schelde, Vlissingen, Netherlands	8.5.2006	24.11.2007	18.10.2008	in service (2019)
Frans Kaisiepo	368	400	Damen-Schelde, Vlissingen, Netherlands	8.5.2006	28.6.2008	7.3.2009	in service (2019)

Technical data

Displacement standard, t
Displacement full, t	1700
Length, m	83.5 wl 90.7 oa
Breadth, m	11.0 wl 13.0 oa
Draught, m	3.85
No of shafts	2
Machinery	2 SEMT-Pielstick 20PA6B STC diesels
Power, h. p.	22030
Max speed, kts	28
Fuel, t	diesel oil
Endurance, nm(kts)	4500(15)
Armament	2 x 2 MM40 Exocet SSM (4 MM40), 2 x 4 Tetral SAM (16? Mistral), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 F-2, 2 x 3 - 324 B515 TT, helicopter deck
Electronic equipment	MW-08, BridgeMaster-E 3500, LIROD Mk 2 (+e/o) radars, Kingklip sonar, Scorpion, DR3000 ECM suites, 2x SKWS DL-12T decoy RL, TACTICOS CCS
Complement	80

Standard scale images

Graphics

Project history

Designed and built in the Netherlands using the modular SIGMA (Ship Integrated Geometrical Modularity Approach) 9113 design. Intended for patrol duties in and around Indonesian waters and the Malaccan Straits. Duties include antipiracy, counter-smuggling, and fisheries patrol. Fitted with 22x12m helicopter landing deck, but no hangar. Ships received Exocet missiles only in 2010.

Modernizations

None.

Naval service

No significant events.
