Karel Satsuit Tubun 2004 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Ahmad Yani (ex-Tjerk Hiddes)	351	518	NDSM, Amsterdam, Netherlands	1.6.1964	17.12.1965	16.8.1967 // 13.10.1986	in service (2019)
Slamet Riyadi (ex-Van Speijk)	352	517	NDSM, Amsterdam, Netherlands	1.10.1963	5.3.1965	14.2.1967 // 1.11.1986	in service (2019)
Yos Sudarso (ex-Van Galen)	353	328	KM De Schelde, Vlissingen, Netherlands	25.7.1963	19.6.1965	1.3.1967 // 2.11.1987	in service (2019)
Oswald Siahaan (ex-Van Nes)	354	322	KM De Schelde, Vlissingen, Netherlands	25.7.1963	26.3.1966	9.8.1967 // 1.11.1988	in service (2019)
Abdul Halim Perdanakasuma (ex-Evertsen)	355	321	KM De Schelde, Vlissingen, Netherlands	6.7.1965	18.6.1966	21.12.1967 // 1.11.1989	in service (2019)
Karel Satsuit Tubun (ex-Isaac Sweers)	356	519	NDSM, Amsterdam, Netherlands	5.5.1965	10.3.1967	15.5.1968 // 1.11.1990	in service (2019)

Technical data

Displacement standard, t	2200
Displacement full, t	2850
Length, m	109.7 wl 113.4 oa
Breadth, m	12.5
Draught, m	5.80
No of shafts	2
Machinery	2 sets Werkspoor-English Electric geared steam turbines, 2 Babcock & Wilcox boilers
Power, h. p.	30000
Max speed, kts	28.5
Fuel, t	oil
Endurance, nm(kts)	4500(12)
Armament	2 x 4 Harpoon SSM (8 RGM-84A), 2 x 4 Seacat GWS22 SAM (16 Seacat), 1 x 1 - 76/62 OTO-Melara Compact, 4 x 1 - 12.7/90, 2 x 3 - 324 TT, 1 helicopter (Lynx)
Electronic equipment	802-805: LW-03, DA-05, M45, 2x M44, TM1229C radars,  PHS-32 sonar, UA-8, UA-9, UA-13 ECM suites, 2x Corvus decoy RL, SEWACO V CCS 814, 815: LW-03, DA-05, M45, 2x M44, TM1229C radars,  PHS-32 sonar, UA-8, UA-9, FH-12 ECM suites, 2x Corvus decoy RL, SEWACO V CCS
Complement	251

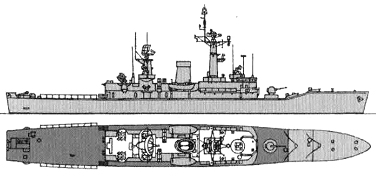

Standard scale images

Graphics

Project history

Former Dutch Van Speijk class frigates.

Modernizations

1996-1997, Yos Sudarso, Oswald Siahaan, Karel Satsuit Tubun: + LIOD MK 2 e/o director

2003-2008, Ahmad Yani, Slamet Riyadi, Yos Sudarso, Abdul Halim Paerdanakasuma: were re-engined with 2 Caterpillar 3616 diesels (14617hp, 22kts)

2003-2008, Oswald Siahaan: was re-engined with 2 SEMT-Pielstick 12PA-6B diesels (14000hp, 22kts)

2003-2008, Karel Satsuit Tubun: was re-engined with 2 Caterpillar 3612 diesels (12512hp, 22kts)

early 2010s, all: - 2 x 4 Seacat GWS22 SAM; + 2 x 2 Simbad SAM (~16 Mistral)

early 2010s, Yos Sudarso and may be others: - 2 x 4 Harpoon SSM; + 2 x 2 Yakhont SSM (8 3M55)

early 2010s, Oswald Siahaan and may be others: - 2 x 4 Harpoon SSM; + 2 x 2 C802 SSM (8 C802)

Naval service

No significant events.
