INDONESIAN NAVY (INDONESIA)

COASTAL FORCES

VIPER patrol boats (2006-2010)

Name No Builder Laid down Launched Comp Fate
Viper 820 Pondok Dayung Naval Repair and Maintenance, Jakarta     19/10/2006 in service (2017)
Piton 821 Fasharkan Mentigi Naval DY     19/10/2006 in service (2017)
Weling 822 Fasharkan Mentigi Naval DY     19/10/2006 in service (2017)
Matacora 823 Fasharkan Mentigi Naval DY     14/3/2008 in service (2017)
Tedung Selar 824 Pondok Dayung Naval Repair and Maintenance, Jakarta     14/3/2008 in service (2017)
Boiga 825 Fasharkan Manokwari Naval DY     1/8/2007 fire 27/7/2010
Tarihu 829 Fasharkan Mentigi Naval DY     7/1/2009 in service (2017)
Alkura 830 Fasharkan Manokwari Naval DY     20/3/2009 in service (2017)
Birang 831 Fasharkan Mentigi Naval DY     26/1/2010 in service (2017)
Mulga 832 Fasharkan Manokwari Naval DY     26/1/2010 in service (2017)

Displacement standard, t



Displacement full, t

100

Length, m

40.0

Breadth, m

7.00

Draught, m

1.40

No of shafts

2

Machinery

2 diesels

Power, h. p.

2500

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)

Armament

1 x 2 - 25/82 2M-3M, 2 x 1 - 12.7/79

Sensors

radar

Complement

25

Ship project history: Class KAL-40.

Modernizations: None.

Naval service: Boiga suffered heavy damage during a fire 27/7/2010 and was stricken.

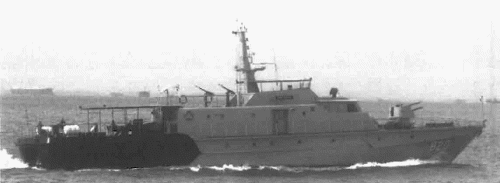

Viper 2010

Ivan Gogin, 2017
