INDONESIAN NAVY (INDONESIA)

COASTAL FORCES

SIBARAU patrol craft (1967-1968/1973-2002)

Sibarau 1990

Name No Builder Laid down Launched Comp Fate
Sibarau (ex-Bandolier) 847 Walkers, Maryborough, Australia 7/1968 2/10/1968 14/12/1968 // 16/11/1973 wrecked 12/2017
Siliman (ex-Archer) 848 Evans Deakin, Brisbane, Australia 7/1967 2/12/1967 15/5/1968 // 1974 in service (2018)
Sigalu (ex-Barricade) 857 Evans Deakin, Brisbane, Australia 12/1967 29/6/1968 26/10/1968 // 22/4/1982 in service (2018)
Silea (ex-Acute) 858 Evans Deakin, Brisbane, Australia 4/1967 26/8/1967 24/4/1968 // 6/5/1983 in service (2018)
Siribua (ex-Bombard) 859 Evans Deakin, Brisbane, Australia 4/1968 6/7/1968 5/11/1968 // 11/1983 in service (2018)
Siada (ex-Barbette) 862 Walkers, Maryborough, Australia 11/1967 10/4/1968 16/8/1968 // 2/2/1985 in service (2018)
Sikuda (ex-Attack) 863 Evans Deakin, Brisbane, Australia 9/1966 8/4/1967 17/11/1967 // 24/5/1985 in service (2018)
Sigurot (ex-Assail) 864 Evans Deakin, Brisbane, Australia   18/11/1967 12/7/1968 // 30/1/1986 in service (2018)
Tenggiri (ex-Ardent) 865 Evans Deakin, Brisbane, Australia   27/4/1968 26/10/1968 // 2002 in service (2018)

Displacement standard, t

125

Displacement full, t

146

Length, m

32.8 oa 30.5 pp

Breadth, m

6.20

Draught, m

1.90

No of shafts

2

Machinery

2 Paxman 16YJCM diesels

Power, h. p.

3500

Max speed, kts

21

Fuel, t

diesel oil 20

Endurance, nm(kts) 1220(13)

Armament

1 x 1 - 40/60 Mk 7, 2 x 1 - 12.7/90

Sensors

2x Decca RM916 radars

Complement

19

Ship project history: Former Australian Attack class patrol craft.

Modernizations: None.

Naval service: Sibarau sank in Malacca Strait in December 2017.

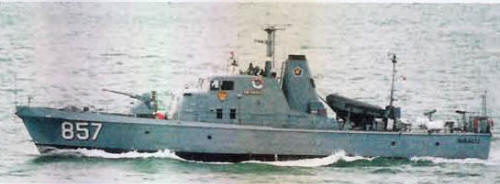

Sigalu 1999
