PP01 patrol boats (1943-1945/1950)
1951
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PP01-10 (ex-RP..., ex-ML...) PP011-025 (ex-RP..., ex-ML...) |
UK: RP01-10, 011-025 |
1943-1945 // 1950: RP01-10, 011-025 |
none |
none |
1974: RP01-10, 011-025 |
Technical data
| Displacement standard, t | 46 |
|---|---|
| Displacement full, t | 54 |
| Length, m | 22.0 |
| Breadth, m | 4.83 |
| Draught, m | 1.40 deep load |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 260 - 480 |
| Max speed, kts | 11 - 13.5 |
| Fuel, t | diesel oil 7500 l |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 37/45 Hotchkiss, 2 x 1 - 20/70 Mk 3, 2 x 2 - 7.7/94, 8 DC |
| Electronic equipment | type 291U radar, type 134 sonar |
| Complement | 10 |
Standard scale images
PP01 1960
Graphics

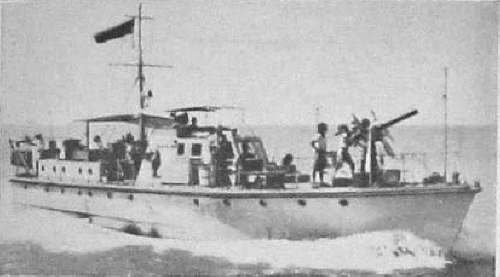

1951
Project history
Former Dutch HDML class motor launches, transferred to the Netherlands by RN during WWII.
Modernizations
None.
Naval service
No significant events.
