PARI patrol craft (2013-2016)
Sembilang
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Pari | 849 | PT Palindo, Batam City | 24.4.2013 | 2013 | in service (2019) | ||
| Sembilang | 850 | PT Palindo, Batam City | 24.4.2013 | 2013 | in service (2019) | ||
| Sidat | 851 | PT Citra, Batam City | 2014 | 27.9.2014 | in service (2019) | ||
| Cakalang | 852 | PT Caputra Mitra Sejati, Serang | 10.3.2016 | 20.7.2016 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 250 |
| Length, m | 43.0 |
| Breadth, m | 7.40 |
| Draught, m | |
| No of shafts | 3 |
| Machinery | 3 MAN diesels |
| Power, h. p. | 4200 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 30/82 Marlin WS, 2 x 1 - 12.7/90 |
| Electronic equipment | nav. radar |
| Complement |
Graphics

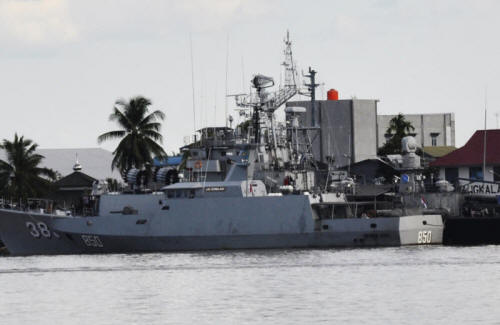

Sembilang
Project history
PC-43 design.
Modernizations
None.
Naval service
No significant events.
