BUBARA large patrol craft (1959)

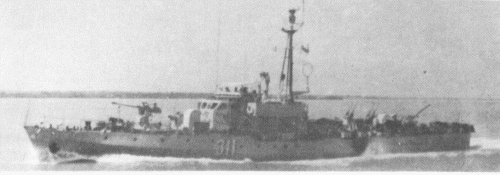

Dorang 1968

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Bubara 310   Tito SYd, Kraljevica, Yugoslavia     3-4/1959 stricken 1970
Dorang 311, 1975- 822   Tito SYd, Kraljevica, Yugoslavia     3-4/1959 stricken 1989
Lajang 312, 1975- 819   Tito SYd, Kraljevica, Yugoslavia     3-4/1959 stricken 1989
Krapu 314, 1975- 821   Tito SYd, Kraljevica, Yugoslavia     3-4/1959 stricken 1976
Lemadang 315, 1975- 820   Tito SYd, Kraljevica, Yugoslavia     3-4/1959 stricken 1984
Todak 316, 1975- 823   Tito SYd, Kraljevica, Yugoslavia     3-4/1959 stricken 1989


Technical data


Displacement standard, t

195
Displacement full, t

245
Length, m

43.1
Breadth, m

6.30
Draught, m

1.70
No of shafts2
Machinery

2 MAN W8V 30/38 diesels
Power, h. p.

3300
Max speed, kts

19
Fuel, tdiesel oil 15
Endurance, nm(kts)1500(12)
Armament

1 x 1 - 76/50 Mk 22, 1 x 1 - 40/60 Mk 3, 2 x 2 - 20/70 Mk 24, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCT, 2 DCR
Electronic equipment

Decca 974 radar, QCU-2 sonar
Complement52


Standard scale images


<i>Lajang </i>1965
Lajang 1965


Graphics


<i>Dorang </i>1968
Dorang 1968


Project history

Yugoslavian Type 509.

Modernizations

early 1970s, all survived: - 2 x 2 - 20/70, 2 DCT; + 2 x 2 - 12.7/79, 1 x 24 - 178 Hedgehog Mk 10 ASWRL

Naval service

No significant events.
