Hiu 1980 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Tenggiri (ex-PC1183)	309, 1975- 806		Gibbs Gas Engine, Jacksonville, USA	10.1942	7.7.1943	12.1943 // 3.1960	stricken 1975
Tjakalang (ex-Pierre, ex-PC1411)	313, 1975- 807	226	Defoe, Bay City, USA	3.1943	22.6.1943	12.1943 // 10.1958	stricken 1981
Torani (ex-Manville, ex-PC581)	317, 1975- 808		Albina, Portland, USA	2.1942	8.7.1942	10.1942 // 3.1960	stricken 1979

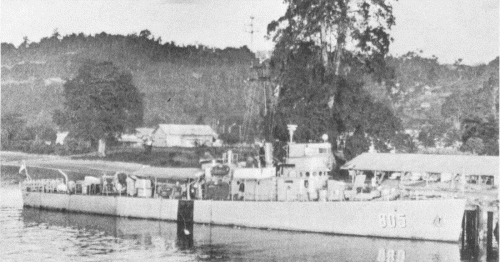

Hiu (ex-Malvern, ex-PC580)	318, 1975- 805		Albina, Portland, USA	1.1942	29.4.1942	9.1942 // 3.1960	stricken early 1990s
Alu Alu (ex-PC787)	1975- 809		Commercial Iron Wks, Portland, USA	1.1943	12.2.1943	11.1943 // 3.1960	stricken 1975

Technical data

Displacement standard, t	280
Displacement full, t	335
Length, m	51.8 wl 52.9 oa
Breadth, m	7.06
Draught, m	2.60 full load
No of shafts	2
Machinery	2 General Motors diesels
Power, h. p.	2880
Max speed, kts	20
Fuel, t	diesel oil 49
Endurance, nm(kts)	5000(10)
Armament	1 x 1 - 76/50 Mk 22, 1 x 1 - 40/60 Mk 3, 3 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCT, 2 DCR
Electronic equipment	SPS-10, Decca 110 radars, QHA sonar
Complement	54

Standard scale images

Graphics

Project history

Former US PC 173ft submarine chasers.

Modernizations

early 1970s, all survived: - 1 x 1 - 40/60, 3 x 1 - 20/70, 2 x 4 - 178 Mousetrap ASWRL; + 2 x 2 - 25/80 2M-3M, 2 x 2 - 12.7/79, 1 x 24 - 178 Hedgehog Mk 10 ASWRL

Naval service

No significant events.
