MAHE inshore minesweepers (1983-1984)





Mulki 1994

Ships


Name

No

Yard No

Builder

Laid down

Launched

Comp

Fate

माहे [Mahe]

M83



Sredne-Nevskiy, Pontonnyy, USSR



16.5.1983

stricken 5.2006

मालवण [Malvan]

M84



Sredne-Nevskiy, Pontonnyy, USSR



16.5.1983

stricken 1.2003

मांगरोल [Mangrol]

M85



Sredne-Nevskiy, Pontonnyy, USSR



16.5.1983

stricken 4.2004

मालपे [Malpe]

M86



Sredne-Nevskiy, Pontonnyy, USSR



10.5.1984

stricken 12.2006

मुल्की [Mulki]

M87

Sredne-Nevskiy, Pontonnyy, USSR

    10.5.1984 stricken 2004
मैग्डला [Magdala] M88

Sredne-Nevskiy, Pontonnyy, USSR

    10.5.1984 stricken 2.2002


Technical data


Displacement standard, t

88

Displacement full, t

97

Length, m

26.1

Breadth, m

5.40

Draught, m

1.38

No of shafts

2

Machinery

2 3D12 diesels

Power, h. p.

600

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)

pr. 1258: 300(10)

pr. 1258E: 350(10)

Armament

1 x 2 - 25/112 2M-3M, 1 x 7 - 55 MRG-1 GL, 2 DCR (12), IT-1 Neva-1 ROV or MT-3U or OPT-1 mechanical or SEMT-1 magnetic or AT-2 acoustic minesweeping gear

Electronic equipment

Kivach radar, MG-7 Braslet sonar

Complement

10



Graphics

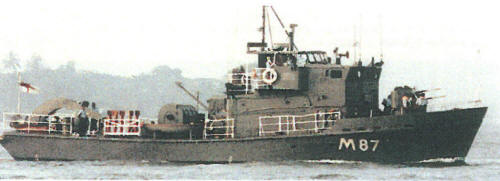

<i>Mulki </i>1994
Mulki 1994


Project history

Soviet export project 1258E.

Modernizations

None.

Naval service

No significant events.
