L411 landing craft (1971/2007)
L411 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| L411 | USA | 1971 // 1.2007 | in service (2019) | ||||
| L412 | USA | 1971 // 1.2007 | in service (2019) | ||||
| L413 | USA | 1971 // 1.2007 | in service (2019) | ||||
| L414 | USA | 1971 // 1.2007 | in service (2019) |
Technical data
| Displacement standard, t | 56 |
|---|---|
| Displacement full, t | 121 |
| Length, m | 22.4 |
| Breadth, m | 6.43 |
| Draught, m | 1.40 aft |
| No of shafts | 2 |
| Machinery | 4 General Motors 6-71 diesels |
| Power, h. p. | 590 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 150(12) |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 150 troops or 60 t of cargo |
| Electronic equipment | nav. radar |
| Complement | 5 |
Graphics

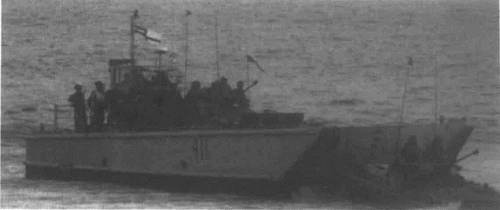

L411 2010
Project history
USN LCM(8) craft, transferred aboard LPD Trenton.
Modernizations
None.
Naval service
No significant events.
