VISAKHAPATNAM destroyers


Ships


Name No Yard No Builder Laid down Launched Comp Fate
विशाखपट्नम [Visakhapatnam] D66 12704 Mazagon Docks, Mumbai 12.10.2013 20.4.2015 2021 building (2019)
मुरगांव [Mormugao] D67 12705 Mazagon Docks, Mumbai 4.6.2015 17.9.2016 2022 building (2019)
इंफाल [Imphal] (ex-पारादीप [Paradip]) D68 12706 Mazagon Docks, Mumbai 19.5.2017 20.4.2019 2023 building (2019)
पोरबन्दर [Porbandar] D69 12707 Mazagon Docks, Mumbai 19.7.2018 2020 2024 planned (2019)


Technical data


Displacement standard, t

7400

Displacement full, t

8000

Length, m

151.5 pp 164.0 oa

Breadth, m

17.7

Draught, m

6.80

No of shafts

2

Machinery

COGAG: 4 Zoria-Mashproekt DT-59 gas turbines

Power, h. p.

82820

Max speed, kts

30

Fuel, t

gas turbine oil

Endurance, nm(kts)

4000(18)

Armament

2 x 8 Brahmos SSM (VLS, 16 Brahmos), 2 x 16 Barak-8 SAM (VLS, 32 Barak-8), 1 x 1 -127/64 OTO-Melara Compact SR, 4 x 6 - 30/54 AK-630M, 2 x 2 - 533 TT (4 SET-65E or 53-65), 2 x 12 RBU-6000 ASWRL, 2 helicopters (Sea King Mk 42B or Dhruv)

Electronic equipment

RAWL-02, EL/M-2248, Apurna, Nucleus 2-6000A, Selux, 2x EL/M-2221, Lynx radars, HUMSA NG, Nagin sonars, Ajanta, Ellora ECM suite, 4x Kavach decoy RL, Mareech torpedo decoy, CMS 15B CCS

Complement

360

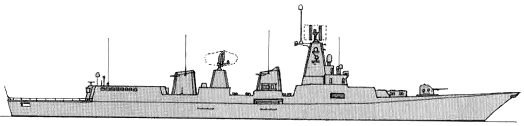

Standard scale images


similar <i>Kolkata </i>2015
similar Kolkata 2015


Project history

Project 15B. These ships will reportedly possess improved signature reduction features and are expected to carry the new Nirbhay 1000km range stealthy cruise missile. The first Project 15B destroyer is planned for delivery around 2018. Construction on the first three was delayed pending a redesign to incorporate both antiship and land-attack missile variants of the Brahmos missile. Sixteen VLS tubes for the Brahmos SSMs are carried forward of the bridge (aft of the gunmount); 16 SAM VLS tubes are installed forward (between the SSM tubes and the gunmount), and 32 additional SAM VLS tubes are carried aft. Helicopter deck is equipped with SAMAHE arresting system.

Modernizations

None.

Naval service

No significant events.
