RANJIT destroyers (1942/1949)





Rajput

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Rana (राणा) (ex-Raider) D115   Cammell Laird, Birkenhead, UK 4.1941 1.4.1942 11.1942 // 9.9.1949 deleted 1979
Ranjit (रणजीत) (ex-Redoubt) D141   John Brown, Clydebank, UK 6/1941 2.5.1942 10/1942 // 4.7.1949 deleted 1979
Rajput (राजपूत) (ex-Rotherham) D209   John Brown, Clydebank, UK 4.1941 21.3.1942 8.1942 // 29.7.1949 deleted 1976


Technical data


Displacement standard, t

1725

Displacement full, t

2424

Length, m

103.5 pp 109.2 oa

Breadth, m

10.9

Draught, m

4.29 deep load

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 2 Admiralty 3-drum diesels

Power, h. p.

40000

Max speed, kts

36

Fuel, t

oil 490

Endurance, nm(kts)4675(20)
Armament

4 x 1 - 120/45 CP Mk XVIII, 4 x 1 - 40/60 Mk VII, 1 x 4 - 40/39 Mk VII, 2 x 2 - 20/70 Mk V, 2 x 4 - 533 TT, 4 DCT, 3 DCR (130)

Electronic equipmenttype 272, type 285, type 291 radars, type 144 sonar
Complement

225



Standard scale images


<i>Rajput </i>1960

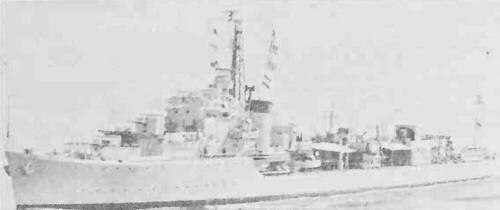

Rajput 1960


Graphics


<i>Rajput</i>
Rajput


Project history

All given lattice foremast in place of tripod, new funnel ventilating trunks for tropical service, retubed boilers and new radar prior to transfer. The new top hamper was counterweighted with 30t of permanent pig iron ballast.

Modernizations

None.

Naval service

No significant events.
