VISHWAST patrol ships (2010-2013)
Vishwast 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| विश्वस्त [Vishwast] | 30 | Goa SYd | 18.11.2006 | 4.7.2008 | 17.3.2010 | in service (2019) | |
| विजिट [Vijit] | 31 | Goa SYd | 2007 | 4.11.2009 | 1.12.2010 | in service (2019) | |
| वैबव [Vaibhav] | 32 | Goa SYd | 2008 | 6.12.2010 | 21.5.2013 | in service (2019) |
Technical data
| Displacement standard, t | 1840 |
|---|---|
| Displacement full, t | 2390 |
| Length, m | 93.9 |
| Breadth, m | 12.2 |
| Draught, m | 3.60 |
| No of shafts | 2 |
| Machinery | 2 MTU 20V8000 M90 diesels |
| Power, h. p. | 24480 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(14) |
| Armament | 1 x 1 - 30/80 Medak CRN-91, 2 x 1 - 12.7/90, 1 helicopter (Chetak) |
| Electronic equipment | 3x nav. radars, IR e/o system |
| Complement | 118 |

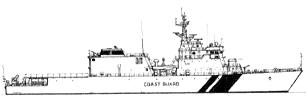

Standard scale images

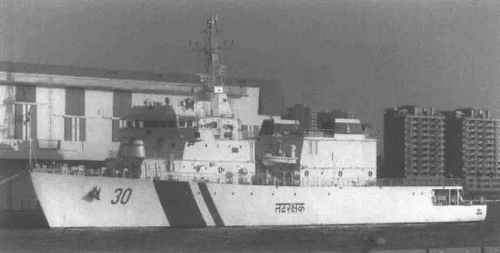

Vishwast 2015
Graphics
Vishwast 2010
Project history
Early stages of construction took place at Shoft SY in Bharuch, with the vessels fitted out at Goa. Intended for coastal patrol, fisheries protection, search and rescue duties, etc. Helicopter landing deck aft; carry at least two small boats for boarding operations and anti-pollution equipment.
Modernizations
None.
Naval service
No significant events.
