VIKRAM patrol ships (2018-)
Vikram 2018
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| विक्रम [Vikram] | 33 | Kattupalli, Chennai | 3/2016 | 27.10.2017 | 11.4.2018 | in service (2019) | |
| विजय [Vijaya] | 34 | Kattupalli, Chennai | 2016 | 20.1.2018 | 14.9.2018 | in service (2019) | |
| वीरा [Veera] | 35 | Kattupalli, Chennai | 2017 | 28.8.2018 | 15.4.2019 | in service (2019) | |
| वराह [Varaha] | 41 | Kattupalli, Chennai | 2017 | 2.11.2018 | 2019 | building (2019) | |
| v | Kattupalli, Chennai | 3.7.2018 | 2019 | 2020 | building (2019) | ||
| vi | Kattupalli, Chennai | 3.7.2018 | 2019 | 2020 | building (2019) |
Technical data
| Displacement standard, t | 2140 |
|---|---|
| Displacement full, t | 2360 |
| Length, m | 97.0 |
| Breadth, m | 15.0 |
| Draught, m | 3.60 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 5000(14) |
| Armament | 1 x 1 - 30/80 Medak CRN-91, 2 x 1 - 12.7/90, 1 helicopter (Dhruv) |
| Electronic equipment | surface search, 2x nav. radars, e/o system |
| Complement |
Graphics

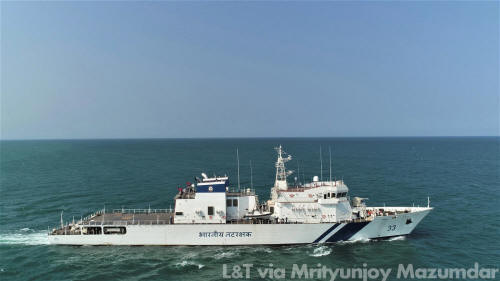

Vikram 2018
Project history
New patrol ships, totally 7 ships in the class.
Modernizations
None.
Naval service
No significant events.
