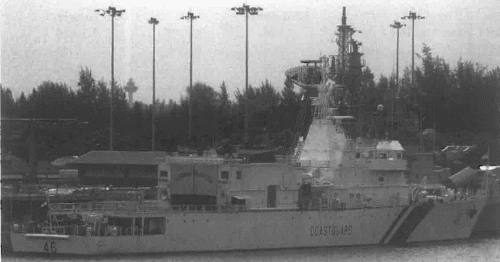

SANKALP patrol ships (2008-2009)


Sankalp 2009

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
संकल्प [Sankalp]	46		Goa SYd	17.7.2004	28.4.2006	20.5.2008	in service (2019)
सम्राट [Samrat]	47		Goa SYd	5/2006	2.7.2007	21.1.2009	in service (2019)

Displacement standard, t	1930
Displacement full, t	2250
Length, m	105.0
Breadth, m	12.9
Draught, m	3.60
No of shafts	2
Machinery	2 SEMT-Pielstick 16PA6B STC diesels
Power, h. p.	20970
Max speed, kts	25
Fuel, t	diesel oil
Endurance, nm(kts)	6500(12)
Armament	2 x 1 - 30/80 Medak CRN-91, 2 x 1 - 12.7/90, 1 helicopter (Chetak)
Electronic equipment	Raytheon surface search, 2x nav. radars, e/o system
Complement	106

Sankalp 2010

Sankalp 2009

New class of patrol craft authorized in 1999. Intended for coastal patrol, fisheries protection, search and rescue duties, etc.

None.

No significant events.
