SAMUDRA PRAHARI patrol/antipollution ships (2010-2016)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| समुद्र प्रहरी [Samudra Prahari] | 201 | ABG, Magdalla | 20.3.2007 | 9.10.2010 | in service (2019) | ||
| समुद्र पहरेदार [Samudra Paheredar] | 202 | ABG, Magdalla | 12.3.2009 | 21.7.2012 | in service (2019) | ||
| समुद्र पावक [Samudra Pavak] | 203 | ABG, Magdalla | 11.7.2012 | 14.1.2016 | in service (2019) |
Technical data
| Displacement standard, t | 3300 |
|---|---|
| Displacement full, t | 4300 |
| Length, m | 95.0 |
| Breadth, m | 15.5 |
| Draught, m | 4.50 |
| No of shafts | 2 |
| Machinery | 2 Bergen B32 diesels |
| Power, h. p. | 8050 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6000(14) |
| Armament | 1 x 1 - 30/80 Medak CRN-91, 2 x 1 - 12.7/90, 1 helicopter (Dhruv) |
| Electronic equipment | 2x Raytheon radars, IR e/o system |
| Complement | 118 |

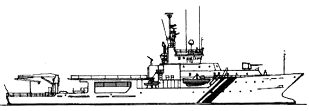

Standard scale images
Samudra Prahari 2015
Project history
Ordered in 2004 for salvage, search and rescue, anti-pollution services and also for patrol duties. Each ship has 5 fast RIBs onboard.
Modernizations
None.
Naval service
No significant events.
