RANI ABBAKKA patrol craft (2012-2018)





Rani Abakka

Ships


Name No Yard No Builder Laid down Launched Comp Fate
रानी अब्बक्का [Rani Abbakka] 77 11154 Hindustan SYd, Visakhapatnam   29.5.2009 20.1.2012 in service (2019)
रानी अवन्ति बाई [Rani Avanti Bai] 78 11155 Hindustan SYd, Visakhapatnam   5.11.2009 9.5.2013 in service (2019)
रानी दुर्गावती [Rani Durgavati] 79 11156 Hindustan SYd, Visakhapatnam   15.5.2010 6.7.2015 in service (2019)
रानी गाइदिन्लयू [Rani Gaidinliu] 80 11157 Hindustan SYd, Visakhapatnam   6.11.2010 19.10.2016 in service (2019)
रानी रश्मोनी [Rani Rashmoni] 81 11158 Hindustan SYd, Visakhapatnam   15.7.2011 18.6.2018 in service (2019)


Technical data


Displacement standard, t
Displacement full, t275
Length, m

44.0 pp 51.2 oa

Breadth, m

7.20 wl 8.36 oa

Draught, m

2.10

No of shafts

3 waterjets

Machinery

3 MTU 16V4000 M90 diesels

Power, h. p.11100
Max speed, kts

32

Fuel, t

diesel oil

Endurance, nm(kts)

1500(14)

Armament

1 x 1 - 30/80 Medak CRN-91, 2 x 1 - 12.7/90, 2 x 1 - 7.6/90

Electronic equipment

2x radars

Complement39


Graphics

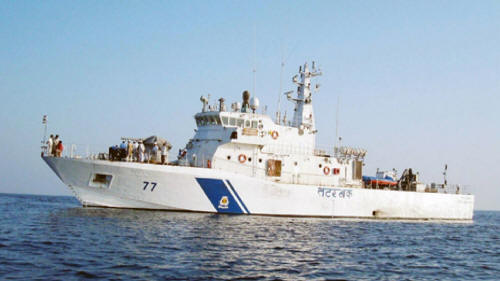

<i>Rani Abakka</i>
Rani Abakka


Project history

Similar to Sarojini Naidu but carry inspection RIB and two Gemini submarine drones.

Modernizations

None.

Naval service

No significant events.
