RAJHANS patrol boats (1980-1986)
Rajkamal 2000
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| राजहंस [Rajhans] | 56 | Garden Reach, Calcutta | 23.12.1980 | stricken 1996 | |||
| राजतरंग [Rajtarang] | 57 | Garden Reach, Calcutta | 26.11.1981 | stricken 1996 | |||
| राजहंस [Rajhans] | 58, 1981- T54 | Goa SYd | 23.12.1980 | Navy 1981, stricken 2005 | |||
| राजकिरण [Rajkiran] | 59 | Goa SYd | 3/1984 | stricken 1999 | |||
| राजश्री [Rajshree] | 60 | Garden Reach, Calcutta | 9/1984 | stricken 1998 | |||
| राजकमल [Rajkamal] | 61 | Garden Reach, Calcutta | 9/1986 | stricken 1999 |
Technical data
| Displacement standard, t | 160 |
|---|---|
| Displacement full, t | 203 |
| Length, m | 37.5 |
| Breadth, m | 7.50 |
| Draught, m | 1.75 |
| No of shafts | 3 |
| Machinery | 2 Deltic 18-42K diesels / 1 Kirloskar Cummins NH-220 diesel |
| Power, h. p. | 6240 / 165 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1400(14) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 DCR (18 Mk 7) |
| Electronic equipment | radar, sonar |
| Complement | 30 |
Graphics

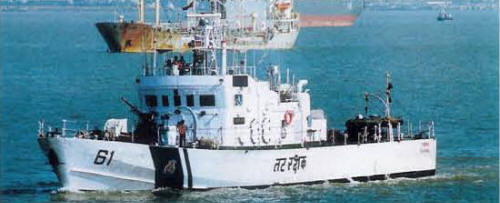

Rajkamal 2000
Project history
Type SDB Mk 2. Identical craft were built for Navy.
Modernizations
None.
Naval service
No significant events.
