TRINKAT patrol craft (2000-2002)





Tarasa 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
तृणकांत [Trinkat] T61   Garden Reach, Kolkata   6/1999 28.9.2000 in service (2019)
तिल्लांचांग [Tillanchang] T62   Garden Reach, Kolkata   10.11.1999 4/2001 to Maldives 4.2006 (Huravee)
तरसा [Tarasa] T63   Garden Reach, Kolkata   5.5.2000 24.8.2001 to Seychelles 11.2014 (Constant)
तरमुगली [Tarmugli] T64   Garden Reach, Kolkata     4.3.2002 to Seychelles 2.2005 (Topaz)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate तृणकांत [Trinkat] T61   Garden Reach, Kolkata   6/1999 28.9.2000 in service (2019) तिल्लांचांग [Tillanchang] T62   Garden Reach, Kolkata   10.11.1999 4/2001 to Maldives 4.2006 (Huravee) तरसा [Tarasa] T63   Garden Reach, Kolkata   5.5.2000 24.8.2001 to Seychelles 11.2014 (Constant) तरमुगली [Tarmugli] T64   Garden Reach, Kolkata     4.3.2002 to Seychelles 2.2005 (Topaz)

Technical data


Displacement standard, t

200

Displacement full, t

260

Length, m

46.0

Breadth, m

7.50

Draught, m

3.90

No of shafts

2

Machinery

2 MTU 16V538 TB92 diesels

Power, h. p.

6820

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)

2000(12)

Armament

1 x 1 - 30/80 Medak CRN-91, 2 x 1 - 7.6/90

Electronic equipment

Bharat 1245 radar

Complement

24



Standard scale images

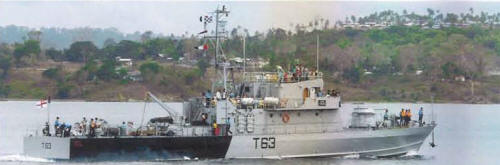

<i>Trinkat </i>2010
Trinkat 2010


Graphics


<i>Tarasa</i> 2007
Tarasa 2007


Project history

Type SDB Mk 4. An enlarged version of the SDB Mk 3. Intended for coastal patrol, smuggling interdiction, fisheries protection, and policing duties.

Modernizations

None.

Naval service

No significant events.
