RAJTARANG large patrol craft (1984-1986)

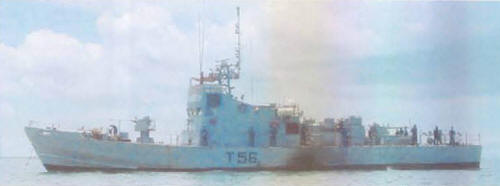

Rajtarang 2004

Ships


Name No Yard No Builder Laid down Launched Comp Fate
राजतरंग [Rajtarang] T56   Garden Reach, Calcutta   2.1981 1984 to Mauritius 1993 (Guardian)
राजश्री [Rajshree] T57   Garden Reach, Calcutta   27.5.1983 1984 stricken 1998
  T58   Goa SYd 17.2.1983 20.12.1983 1984 stricken 2011
  T59   Goa SYd 24.3.1983 20.3.1984 29.3.1984 stricken 2011
राजकमल [Rajkamal] T60   Goa SYd   17.1.1984 10.1984 stricken 2011


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate राजतरंग [Rajtarang] T56   Garden Reach, Calcutta   2.1981 1984 to Mauritius 1993 (Guardian) राजश्री [Rajshree] T57   Garden Reach, Calcutta   27.5.1983 1984 stricken 1998   T58   Goa SYd 17.2.1983 20.12.1983 1984 stricken 2011   T59   Goa SYd 24.3.1983 20.3.1984 29.3.1984 stricken 2011 राजकमल [Rajkamal] T60   Goa SYd   17.1.1984 10.1984 stricken 2011

Technical data


Displacement standard, t

167

Displacement full, t

210

Length, m

32.2 pp 37.8 oa

Breadth, m

7.50

Draught, m

1.30 hull 1.85 propellers

No of shafts

2

Machinery

2 MTU 16V538 TB92 diesels

Power, h. p.

6820

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 40/60 Mk 3

Electronic equipment

Bharat 1245 radar

Complement

32



Graphics


<i>Rajtarang</i> 2004
Rajtarang 2004


Project history

SDB Mk 3 design. SDB Mk 2 with better hullform, without cruising engine and sonar.

Modernizations

None.

Naval service

No significant events.
