PRALAYA missile patrol craft (2002)

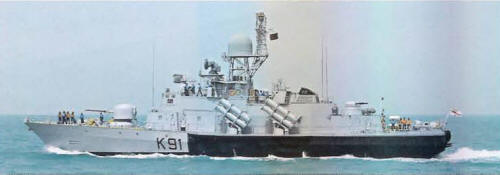

Pralaya 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
प्रलय [Pralaya] K91   Goa SYd 14.11.1998 14.12.2000 18.12.2002 in service (2019)
प्रबल [Prabal] K92   Mazagon Dock, Mumbai 30.8.1998 21.9.2000 11.4.2002 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate प्रलय [Pralaya] K91   Goa SYd 14.11.1998 14.12.2000 18.12.2002 in service (2019) प्रबल [Prabal] K92   Mazagon Dock, Mumbai 30.8.1998 21.9.2000 11.4.2002 in service (2019)

Technical data


Displacement standard, t

445

Displacement full, t

500

Length, m

56.9

Breadth, m

13.0 max

Draught, m

2.65 hull 4.51 propellers

No of shafts

2

Machinery

2 M-15E gas turbine units (each consist of M-75 cruising gas turbine and M-70 boost gas turbine)

Power, h. p.

10000 + 24000 = 34000

Max speed, kts

40

Fuel, t

diesel oil 100

Endurance, nm(kts)

1650(12)

Armament

4 x 4 Uran SSM (16 3M24E), 1 x 4 Strela-3M SAM (16 9M36M), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 6 - 30/54 AK-630M

Electronic equipment

Rani, Pozitiv-E, Aparna, Lynx radars, Ajanta ECM suite. 2x PK-16 decoy RL

Complement

41



Standard scale images


<i>Pralaya </i>2010
Pralaya 2010


Graphics


<i>Pralaya </i>2008
Pralaya 2008


Project history

Improved Soviet project 1241RE with Uran missiles and Indian electronics.

Modernizations

None.

Naval service

No significant events.
