PRACHAND fast attack craft (missile) (1976-1977)





1977

Ships


Name No Yard No Builder Laid down Launched Comp Fate
प्रचंड [Prachand] K90   Vympel, Rybinsk, USSR     17.2.1976 stricken 12.1999
प्रलय [Pralaya] K91   Vympel, Rybinsk, USSR     17.2.1976 stricken 6.2001
प्रताप [Pratap] K92   Vympel, Rybinsk, USSR     17.2.1976 stricken 5.1996
प्रबल [Prabal] K93   Vympel, Rybinsk, USSR     17.2.1976 stricken 12.1999
चपल [Chapal] K94   Vympel, Rybinsk, USSR     4.11.1976 stricken 5.2005
चमक [Chamak] K95   Vympel, Rybinsk, USSR     4.11.1976 stricken 5.2005
चटक [Chatak] K96   Vympel, Rybinsk, USSR     9.2.1977 stricken 5.2005
चराग [Charag] K97   Vympel, Rybinsk, USSR     17.10.1977 stricken 5.1996


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate प्रचंड [Prachand] K90   Vympel, Rybinsk, USSR     17.2.1976 stricken 12.1999 प्रलय [Pralaya] K91   Vympel, Rybinsk, USSR     17.2.1976 stricken 6.2001 प्रताप [Pratap] K92   Vympel, Rybinsk, USSR     17.2.1976 stricken 5.1996 प्रबल [Prabal] K93   Vympel, Rybinsk, USSR     17.2.1976 stricken 12.1999 चपल [Chapal] K94   Vympel, Rybinsk, USSR     4.11.1976 stricken 5.2005 चमक [Chamak] K95   Vympel, Rybinsk, USSR     4.11.1976 stricken 5.2005 चटक [Chatak] K96   Vympel, Rybinsk, USSR     9.2.1977 stricken 5.2005 चराग [Charag] K97   Vympel, Rybinsk, USSR     17.10.1977 stricken 5.1996

Technical data


Displacement standard, t

192

Displacement full, t

243

Length, m

38.6

Breadth, m

7.60

Draught, m

2.00

No of shafts

3

Machinery

3 M-504B diesels

Power, h. p.

15000

Max speed, kts

42

Fuel, t

diesel oil

Endurance, nm(kts)

1620(15)

Armament

4 x 1 P-15U SSM (4 P-15U), 2 x 2 - 30/71 AK-230

Electronic equipment

MR-101 Rangout, MR-104 Rys' radars

Complement

29



Standard scale images

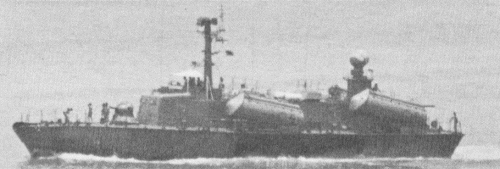

<i>Prachand </i>1980
Prachand 1980


Graphics


1977
1977


Project history

Soviet project 205ER.

Modernizations

None.

Naval service

No significant events.
