IXIMCHE coastal patrol boat (1997)





sistership 2001

Ships


Names Builders Commissioned Losses Transfers Discarding

Iximche

SeArk, Monticello, USA: Iximche

1997: Iximche

none

none

in service (2019): Iximche



Technical data


Displacement standard, t11
Displacement full, t

15

Length, m

12.2

Breadth, m

3.86

Draught, m

0.70

No of shafts

2

Machinery

2 Caterpillar 3208TA diesels

Power, h. p.690
Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)600(18)
Armament

1 x 1 - 7.6/90

Electronic equipmentRaytheon R40X radar
Complement

5



Graphics

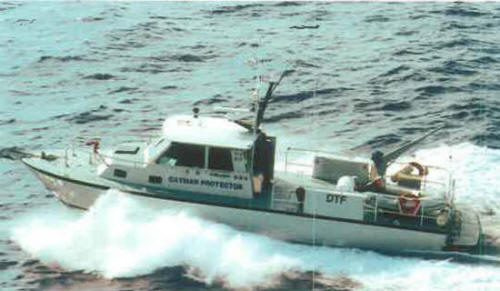

sistership 2001
sistership 2001


Project history

US Dauntless type. Aluminium hull. Donated by US government as foreign aid.

Modernizations

None.

Naval service

No significant events.
