PLEIAS survey vessel / minelayer (1927)

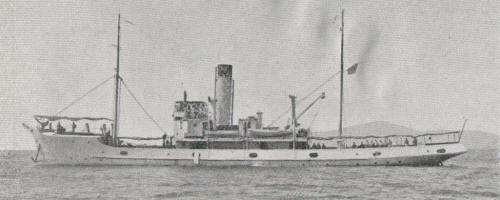

Pleias 1931
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Πλειάς [Pleias] | Breda, Venice, Italy | 1926 | 28.4.1926 | 2/1927 | sunk 25.4.1941 |
Technical data
| Displacement standard, t | 520 |
|---|---|
| Displacement full, t | |
| Length, m | 49.4 |
| Breadth, m | 8.23 |
| Draught, m | 3.81 |
| No of shafts | 1 |
| Machinery | 1 VTE |
| Power, h. p. | 1000 |
| Max speed, kts | 14 |
| Fuel, t | coal 90 |
| Endurance, nm(kts) | |
| Armament | 50 mines |
| Complement |
Standard scale images
Pleias 1937
Graphics
Pleias 1931
Project history
Pleias was built in 1926-1928 by Breda (Venice) under Greek order as survey vessel with minelaying abilities.
Modernizations
None.
Naval service
Pleias was sunk 25.4.1941 by German aircraft at S coast of Greece.
