IOS small landing ships (1965-1966/1989-1992)

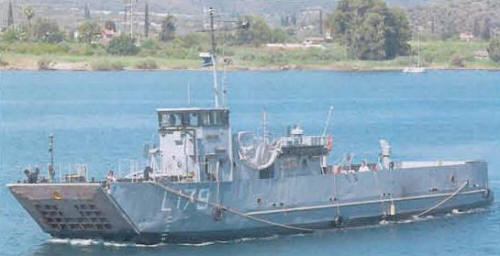

Paros 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
'Ιος [Ios] (ex-Barbe) L167   Howaldtwerke, Hamburg, West Germany   26.11.1965 10.1.1966 // 31.1.1992 stricken 2016
Σίκινος [Sikinos] (ex-Dorsch) L168   Howaldtwerke, Hamburg, West Germany   17.3.1966 24.6.1966 // 31.1.1992 stricken 2006
Ηρακλειά [Irakleia] (ex-Forelle) L169   Howaldtwerke, Hamburg, West Germany   20.4.1966 7.6.1966 // 31.1.1992 stricken 2018
Φολέγανδρος [Folegandros] (ex-Delphin) L170   Howaldtwerke, Hamburg, West Germany   25.11.1965 10.1.1966 // 31.1.1992 in service (2019)
Νάξος [Naxos] (ex-Renke) L178   Howaldtwerke, Hamburg, West Germany   22.9.1966 26.10.1966 // 16.11.1989 in service (2019)
Πάρος [Paros] (ex-Salm) L179   Howaldtwerke, Hamburg, West Germany   23.9.1966 26.10.1966 // 16.11.1989 in service (2019)
Σέριφος [Serifos] (ex-Rochen) L195   Howaldtwerke, Hamburg, West Germany   18.3.1966 26.4.1966 // 20.10.1992 stricken 2019


Technical data


Displacement standard, t

166
Displacement full, t

403
Length, m

36.7 pp 40.0 oa
Breadth, m

8.80
Draught, m

1.60 normal 2.10 max
No of shafts

2
Machinery

2 MWM TRHS518 diesels
Power, h. p.

1200
Max speed, kts

11
Fuel, t

diesel oil 40
Endurance, nm(kts)

1200(11)
Armament

2 x 1 - 20/90 Rh-202
Military load

cargo: 237 t max, 142 t normal (3 tanks)
Electronic equipmentKelvin Hughes 14/9 radar
Complement17


Standard scale images


<i>Irakleia </i>2010
Irakleia 2010


Graphics


<i>Paros </i>2007
Paros 2007


Project history

Former Type 520 (Butt class) landing craft of Bundesmarine. Naxos is used as personnel transport.

Modernizations

None.

Naval service

No significant events.
