LS-134 patrol interceptors (1998)
LS-136 2004
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ΛΣ-134-136 [LS-134-136] |
Dockstavarvet, Sweden: LS-134-136 |
1998: LS-134-136 |
None |
None |
in service (2019): LS-134-136 |
Technical data
| Displacement standard, t | 13 |
|---|---|
| Displacement full, t | 19 |
| Length, m | 13.0 wl 14.9 oa |
| Breadth, m | 3.80 |
| Draught, m | 1.00 |
| No of shafts | 2 waterjets |
| Machinery | 2 Volvo-Penta TAMD163P diesels |
| Power, h. p. | 1500 |
| Max speed, kts | 45 |
| Fuel, t | diesel oil 1.5 |
| Endurance, nm(kts) | 240(30) |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | FR-8051 radar |
| Complement | 4 |
Graphics

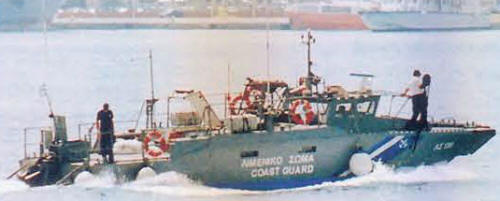

LS-136 2004
Project history
CB-90NEX class. GRP construction with armoured cockpit. Capable of being beached.
Modernizations
None.
Naval service
No significant events.
