LS-114 patrol boats (1994-1996)
LS-119 2004
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ΛΣ-114-128, 133 [LS-114-128, 133] |
Colvic Craft, Colchester, UK / Motomarine, Gilfada: LS-114-128, 133 |
1994-1996: LS-114-128, 133 |
LS-120 (collision 2010s), LS-124 (fire 2.1995) |
None |
2010s: LS-133 in service (2019): LS-114-119, 121-123, 125-128 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 24 |
| Length, m | 13.4 pp 16.3 oa |
| Breadth, m | 4.68 |
| Draught, m | 1.38 |
| No of shafts | 2 |
| Machinery | 2 MAN D2840LXE diesels |
| Power, h. p. | 1640 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil 3 |
| Endurance, nm(kts) | 500(25) |
| Armament | 1 x 1 - 12.7/90, 1 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 5 |
Graphics

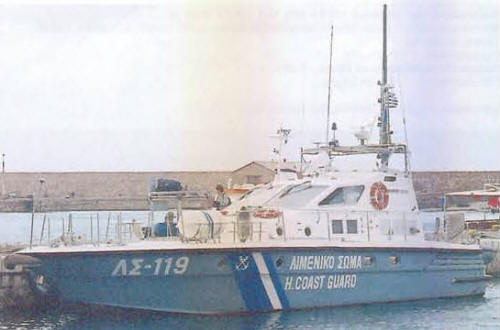

LS-119 2004
Project history
Employ GRP hull molded by Colvic Craft using Sunquest 53 yacht hull standard.
Modernizations
None.
Naval service
No significant events.
