T1 motor torpedo boats (1929)
T2 1930s
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
T1, 2 |
Thornycroft, Hampton, UK: T1, 2 |
1929: T1, 2 |
T1 (German SG1 4.1941), T2 (German SG2 4.1941) |
none |
none |
Technical data
| Displacement standard, t | 12 |
|---|---|
| Displacement full, t | 15 |
| Length, m | 16.8 |
| Breadth, m | 3.36 |
| Draught, m | 0.99 |
| No of shafts | 2 |
| Machinery | 2 Thornycroft petrol engines |
| Power, h. p. | 750 |
| Max speed, kts | 40.4 |
| Fuel, t | petrol 1.3 |
| Endurance, nm(kts) | 200(39) |
| Armament | 2 x 1 - 7.7/87, 2 - 450 TR, 4DC |
| Complement | 5 |
Standard scale images
T1 1929
Graphics

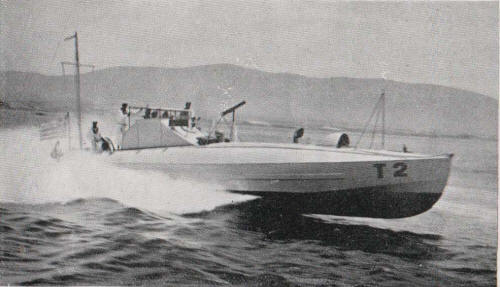

T2 1930s
Project history
Typical representatives of family of Thornycroft 55ft boats. Wooden stepped hull, torpedoes were launched from the racks aftward.
Modernizations
None.
Naval service
No significant events.
