GHANA
COASTAL FORCES
P20 patrol boats (1963/1967)
P23 1969
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P20-23 |
USSR: P20-23 |
1963 // 1967: P20-23 |
none |
none |
1970: P22 1973: P20, 21, 23 |
Technical data
| Displacement standard, t | 86 |
|---|---|
| Displacement full, t | 99 |
| Length, m | 29.9 |
| Breadth, m | 5.98 |
| Draught, m | 1.52 |
| No of shafts | 2 |
| Machinery | 2 M-50F-3 diesels |
| Power, h. p. | 1600 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil 9 |
| Endurance, nm(kts) | 550(14) |
| Armament | 1 x 2 - 14.5/89 |
| Electronic equipment | Stvor or Donets-2 radar |
| Complement | 16 |
Standard scale images
P20 1970
Graphics

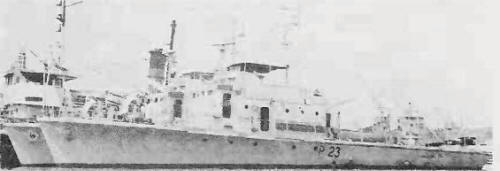

P23 1969
Project history
Modifications of standard Soviet torpedo recovery vessel of Project T368, Project RS368 boats.
Modernizations
None.
Naval service
No significant events.
