NAVYPEDIA

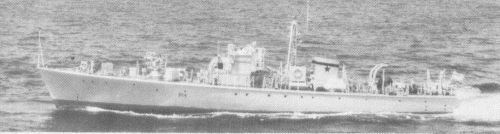

Komenda 1969

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Elmina	P13		Yarrow, Scotstoun, UK			10.1962	discarded 1985
Komenda	P14		Yarrow, Scotstoun, UK			12.1962	discarded 1986

Technical data

Displacement standard, t	120
Displacement full, t	142
Length, m	33.5 pp 35.8 oa
Breadth, m	6.10
Draught, m	2.10
No of shafts	3
Machinery	2 Maybach MD16V53-87B90 diesels + 1 Foden diesel
Power, h. p.	3000 + 100
Max speed, kts	20 / 8
Fuel, t	diesel oil
Endurance, nm(kts)	1000(13)
Armament	1 x 1 - 40/60 Mk 7, 2 DCT, 2 DCR
Electronic equipment	type 978 radar, type 144 sonar
Complement	32

Standard scale images

Graphics

Project history

Development of British 'Ford' design, built for Ghana.

Modernizations

1967, both: Foden diesel and central shaft were removed.

Naval service

No significant events.
