DZATA large patrol craft (1979-1980)

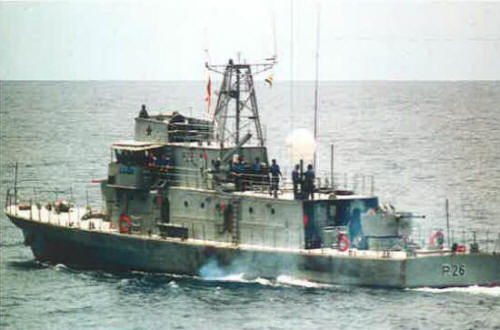

Dzata 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Dzata | P26 | Lürssen, Vegesack, West Germany | 16.1.1978 | 19.9.1979 | 4.12.1979 | in service (2019) | |
| Sebo | P27 | Lürssen, Vegesack, West Germany | 1.1978 | 19.9.1979 | 2.5.1980 | in service (2019) |
Technical data
| Displacement standard, t | 212 |
|---|---|
| Displacement full, t | 252 |
| Length, m | 42.3 pp 44.9 oa |
| Breadth, m | 7.00 |
| Draught, m | 2.50 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 16V538 TB91 diesels |
| Power, h. p. | 6000 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(15) |
| Armament | 2 x 1 - 40/70 Breda-Bofors 564 |
| Electronic equipment | Decca 1226 radar |
| Complement | 35 |
Standard scale images
Dzata 1980
Graphics
Dzata 2002
Project history
Lürssen TNC45 type.
Modernizations
1989, Dzata; 1992, Sebo: - Decca 1226 radar; + Furuno FAR-2117, Furuno FR-1500 radars
Naval service
No significant events.
