Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
---|---|---|---|---|---|---|---|
U2321 | 475 | Deutsche Werft, Hamburg | 3.1944 | 17.4.1944 | 6/1944 | surrendered 5.1945, scuttled 27.11.1945 | |
U2322 | 476 | Deutsche Werft, Hamburg | 3.1944 | 30.4.1944 | 7/1944 | surrendered 5.1945, scuttled 27.11.1945 | |
U2323 | 477 | Deutsche Werft, Hamburg | 4.1944 | 31.5.1944 | 7/1944 | sunk 26.7.1944 | |
U2324 | 478 | Deutsche Werft, Hamburg | 4.1944 | 16.6.1944 | 7/1944 | surrendered 5.1945, scuttled 27.11.1945 | |
U2325 | 479 | Deutsche Werft, Hamburg | 4.1944 | 13.7.1944 | 8/1944 | surrendered 5.1945, scuttled 28.11.1945 | |
U2326 | 480 | Deutsche Werft, Hamburg | 5.1944 | 17.7.1944 | 8/1944 | surrendered 5.1945, to United Kingdom 5.1945 (N35) | |
U2327 | 481 | Deutsche Werft, Hamburg | 5.1944 | 29.7.1944 | 8/1944 | scuttled 2.5.1945 | |
U2328 | 482 | Deutsche Werft, Hamburg | 5.1944 | 7.8.1944 | 8/1944 | surrendered 5.1945, scuttled 27.11.1945 | |
U2329 | 483 | Deutsche Werft, Hamburg | 6.1944 | 11.8.1944 | 9/1944 | surrendered 5.1945, scuttled 28.11.1945 | |
U2330 | 484 | Deutsche Werft, Hamburg | 6.1944 | 19.8.1944 | 9/1944 | scuttled 3.5.1945 | |
U2331 | 485 | Deutsche Werft, Hamburg | 6.1944 | 22.8.1944 | 9/1944 | scuttled 3.5.1945 | |
U2332 | 941 | Germaniawerft, Kiel | 9.1944 | 18.10.1944 | 11/1944 | scuttled 2.5.1945 | |
U2333 | 942 | Germaniawerft, Kiel | 9.1944 | 16.11.1944 | 12/1944 | scuttled 5.5.1945 | |
U2334 | 488 | Deutsche Werft, Hamburg | 7.1944 | 26.8.1944 | 9/1944 | surrendered 5.1945, scuttled 28.11.1945 | |
U2335 | 489 | Deutsche Werft, Hamburg | 7.1944 | 31.8.1944 | 9/1944 | surrendered 5.1945, scuttled 28.11.1945 | |
U2336 | 490 | Deutsche Werft, Hamburg | 7.1944 | 10.9.1944 | 9/1944 | surrendered 5.1945, scuttled 3.1.1946 | |
U2337 | 491 | Deutsche Werft, Hamburg | 8.1944 | 15.9.1944 | 10/1944 | surrendered 5.1945, scuttled 28.11.1945 | |
U2338 | 492 | Deutsche Werft, Hamburg | 8.1944 | 18.9.1944 | 10/1944 | sunk 4.5.1945 | |
U2339 | 493 | Deutsche Werft, Hamburg | 8.1944 | 22.9.1944 | 11/1944 | scuttled 5.5.1945 | |
U2340 | 494 | Deutsche Werft, Hamburg | 8.1944 | 28.9.1944 | 10/1944 | sunk 30.3.1945 | |
U2341 | 495 | Deutsche Werft, Hamburg | 8.1944 | 3.10.1944 | 10/1944 | surrendered 5.1945, scuttled 31.12.1945 | |
U2342 | 496 | Deutsche Werft, Hamburg | 8.1944 | 13.10.1944 | 11/1944 | sunk 26.12.1944 | |
U2343 | 497 | Deutsche Werft, Hamburg | 8.1944 | 18.10.1944 | 11/1944 | scuttled 5.5.1945 | |
U2344 | 498 | Deutsche Werft, Hamburg | 9.1944 | 24.10.1944 | 11/1944 | collision 18.2.1945 | |
U2345 | 499 | Deutsche Werft, Hamburg | 9.1944 | 28.10.1944 | 11/1944 | surrendered 5.1945, scuttled 27.11.1945 | |
U2346 | 500 | Deutsche Werft, Hamburg | 9.1944 | 31.10.1944 | 11/1944 | scuttled 5.5.1945 | |
U2347 | 501 | Deutsche Werft, Hamburg | 9.1944 | 6.11.1944 | 12/1944 | scuttled 5.5.1945 | |
U2348 | 502 | Deutsche Werft, Hamburg | 9.1944 | 11.11.1944 | 12/1944 | surrendered 5.1945, to United Kingdom 6.1945, BU 4.1949 | |
U2349 | 503 | Deutsche Werft, Hamburg | 9.1944 | 20.11.1944 | 12/1944 | scuttled 5.5.1945 | |
U2350 | 504 | Deutsche Werft, Hamburg | 9.1944 | 22.11.1944 | 12/1944 | surrendered 5.1945, scuttled 28.11.1945 | |
U2351 | 505 | Deutsche Werft, Hamburg | 10.1944 | 25.11.1944 | 12/1944 | stricken 4.1945, scuttled 3.1.1946 | |
U2352 | 506 | Deutsche Werft, Hamburg | 10.1944 | 5.12.1944 | 1/1945 | scuttled 5.5.1945 | |
U2353 | 507 | Deutsche Werft, Hamburg | 10.1944 | 6.12.1944 | 1/1945 | surrendered 5.1945, to United Kingdom 5.1945 (N31), to Soviet Union 1947 (М-31 [M-31]) | |
U2354 | 508 | Deutsche Werft, Hamburg | 10.1944 | 10.12.1944 | 1/1945 | surrendered 5.1945, scuttled 22.12.1945 | |
U2355 | 509 | Deutsche Werft, Hamburg | 10.1944 | 13.12.1944 | 1/1945 | scuttled 3.5.1945 | |
U2356 | 510 | Deutsche Werft, Hamburg | 10.1944 | 19.12.1944 | 1/1945 | surrendered 5.1945, scuttled 6.1.1946 | |
U2357 | 511 | Deutsche Werft, Hamburg | 10.1944 | 20.12.1944 | 1/1945 | scuttled 5.5.1945 | |
U2358 | 512 | Deutsche Werft, Hamburg | 11.1944 | 22.12.1944 | 1/1945 | scuttled 5.5.1945 | |
U2359 | 513 | Deutsche Werft, Hamburg | 11.1944 | 23.12.1944 | 1/1945 | sunk 2.5.1945 | |
U2360 | 514 | Deutsche Werft, Hamburg | 11.1944 | 29.12.1944 | 1/1945 | scuttled 5.5.1945 | |
U2361 | 515 | Deutsche Werft, Hamburg | 11.1944 | 3.1.1945 | 2/1945 | surrendered 5.1945, scuttled 27.11.1945 | |
U2362 | 516 | Deutsche Werft, Hamburg | 11.1944 | 11.1.1945 | 2/1945 | scuttled 5.5.1945 | |
U2363 | 517 | Deutsche Werft, Hamburg | 11.1944 | 18.1.1945 | 2/1945 | surrendered 5.1945, scuttled 28.11.1945 | |
U2364 | 518 | Deutsche Werft, Hamburg | 11.1944 | 23.1.1945 | 2/1945 | scuttled 5.5.1945 | |
U2365, 1957- Hai | S170 | 519 | Deutsche Werft, Hamburg | 12.1944 | 26.1.1945 | 3/1945 | scuttled 8.5.1945, re-commissioned 8.1957, foundered 14.9.1966 |
U2366 | 520 | Deutsche Werft, Hamburg | 12.1944 | 17.2.1945 | 3/1945 | scuttled 5.5.1945 | |
U2367, 1957- Hecht | S171 | 521 | Deutsche Werft, Hamburg | 12.1944 | 23.2.1945 | 3/1945 | collision 5.5.1945, re-commissioned 10.1957, stricken 1968 |
U2368 | 522 | Deutsche Werft, Hamburg | 12.1944 | 19.3.1945 | 4/1945 | scuttled 5.5.1945 | |
U2369 | 523 | Deutsche Werft, Hamburg | 12.1944 | 24.3.1945 | 4/1945 | scuttled 5.5.1945 | |
U2370 | 524 | Deutsche Werft, Hamburg | 12.1944 | 3/1945 | --- | scuttled incomplete 3.5.1945 | |
U2371 | 525 | Deutsche Werft, Hamburg | 1.1945 | 18.4.1945 | 4/1945 | scuttled 3.5.1945 | |
U2372 | 1189 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2373 | 1190 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2374 | 1191 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2375 | 1192 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2376 | 1193 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2377 | 1194 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2378 | 1195 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2379 | 1196 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2380 | 1197 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2381 | 1198 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2382 | 1199 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2383 | 1200 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2384 | 1201 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2385 | 1202 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2386 | 1203 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2387 | 1204 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2388 | 1205 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2389 | 1206 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U2401 | 804 | Ansaldo, Genoa | 1944 | --- | --- | cancelled 7.1944 | |
U2402 | 805 | Ansaldo, Genoa | 1944 | --- | --- | cancelled 7.1944 | |
U2403 | 806 | Ansaldo, Genoa | 1944 | --- | --- | cancelled 7.1944 | |
U2431 | 656 | CRDA, Monfalcone | 1944 | --- | --- | cancelled 7.1944 | |
U2432 | 657 | CRDA, Monfalcone | 1944 | --- | --- | cancelled 7.1944 | |
U4701 | 943 | Germaniawerft, Kiel | 10.1944 | 14.12.1944 | 1.1945 | scuttled 5.5.1945 | |
U4702 | 944 | Germaniawerft, Kiel | 10.1944 | 20.12.1944 | 1.1945 | scuttled 5.5.1945 | |
U4703 | 945 | Germaniawerft, Kiel | 11.1944 | 3.1.1945 | 1.1945 | scuttled 5.5.1945 | |
U4704 | 946 | Germaniawerft, Kiel | 11.1944 | 13.2.1945 | 3.1945 | scuttled 5.5.1945 | |
U4705 | 947 | Germaniawerft, Kiel | 11.1944 | 11.1.1945 | 2.1945 | scuttled 3.5.1945 | |
U4706 | 948 | Germaniawerft, Kiel | 11.1944 | 19.1.1945 | 2.1945 | surrendered 5.1945 to United Kingdom 5.1945, to Norway 10.1948 (Knertner) | |
U4707 | 949 | Germaniawerft, Kiel | 12.1944 | 25.1.1945 | 2.1945 | scuttled 5.5.1945 | |
U4708 | 950 | Germaniawerft, Kiel | 12.1944 | 24.3.1945 | --- | sunk incomplete 9.4.1945 | |
U4709 | 951 | Germaniawerft, Kiel | 12.1944 | 8.2.1945 | 3.1945 | scuttled 4.5.1945 | |
U4710 | 952 | Germaniawerft, Kiel | 3.1945 | 14.4.1945 | 5.1945 | scuttled 5.5.1945 | |
U4711 | 953 | Germaniawerft, Kiel | 12.1944 | 21.2.1945 | 3.1945 | scuttled 4.5.1945 | |
U4712 | 954 | Germaniawerft, Kiel | 1.1945 | 1.3.1945 | 4.1945 | scuttled 3.5.1945 | |
U4713 | 955 | Germaniawerft, Kiel | 1.1945 | 19.4.1945 | --- | BU incomplete 1945 | |
U4714 | 956 | Germaniawerft, Kiel | 1.1945 | 26.4.1945 | --- | BU incomplete 1945 | |
U4715 | 957 | Germaniawerft, Kiel | 3.1945 | --- | --- | BU incomplete 1945 | |
U4716 | 958 | Germaniawerft, Kiel | 3.1945 | --- | --- | BU incomplete 1945 | |
U4717 | 959 | Germaniawerft, Kiel | 3.1945 | --- | --- | BU incomplete 1945 | |
U4718 | 960 | Germaniawerft, Kiel | 3.1945 | --- | --- | BU incomplete 1945 | |
U4719 | 961 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4720 | 962 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4721 | 963 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4722 | 964 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4723 | 965 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4724 | 966 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4725 | 967 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4726 | 968 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4727 | 969 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4728 | 970 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4729 | 971 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4730 | 972 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4731 | 973 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4732 | 974 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4733 | 975 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4734 | 976 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4735 | 977 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4736 | 978 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4737 | 979 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4738 | 980 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4739 | 981 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4740 | 982 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4741 | 983 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4742 | 984 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4743 | 985 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4744 | 986 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4745 | 987 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4746 | 988 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4747 | 989 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired | |
U4748 | 990 | Germaniawerft, Kiel | --- | --- | --- | never laid down, part of hull sections were prepaired |
Data variant | type XXIII | type 240 |
---|---|---|
Displacement standard, t |
|
|
Displacement normal, t | 234 / 258 |
234 / 275 |
Length, m | 34.7 |
36.1 |
Breadth, m | 3.02 |
3.02 |
Draught, m | 3.66 |
3.67 |
No of shafts | 1 |
1 |
Machinery | 1 MWM diesel / 1 AEG electric motor / 1 BBC crouching electric motor |
1 Maybach MB820S1 diesel-generator / 1 electric motor |
Power, h. p. | 575 - 630 / 580 / 35 |
630 / 580 |
Max speed, kts | 9.7 / 12.5 |
9.7 / 12.5 |
Fuel, t | diesel oil 20 |
diesel oil 18 |
Endurance, nm(kts) | 4450(6) / 194(4) | 2600(8) / 194(4) |
Armament | 2 - 533 TT (bow, 2) |
2 - 533 TT (2) |
Electronic equipment | FuMO 61 radar, GHG, Balkon-Gerät hydrohones, FuMB 3 Bali, FuMB 6 Palau ECM suites | radar, GHG, Balkon-Gerät hydrophones |
Complement | 14 | 17 |
Diving depth operational, m | 80 |
80 |

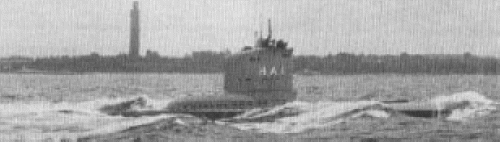

Last series of submarines designed and constructed before capitulation of Germany. Small submarines of XXIII series formed on the same principles that has been taken as a principle for design of large submarines of XXI series. Being similar in the dimensions with boats of II series, new submarines had almost twice higher submerged speed and in 5 times longer could be in the submerged position.
Single-hulled; cross-section of the pressure hull had the form of "8". A working diving depth was 80m, maximal 160m; minimal diving time was 9sec. Single-shaft machinery on design reminded applied on XXI series and included the electric motor for "crouching", allowing to reach 4.5kts. Boats were equipped with telescopic snorkel, but had only one periscope. Shortage of internal space, main lack of the design, did not allow to carry spare torpedoes: TTs were reloaded only outside. Despite it, submarines of XXIII series were considered very successful.
Though designing of XXIII series has begun after end of works on the design of XXI series, they were appeared embodied in metal before than latter. Building was conducted by line production method: the hull was assembled from four practically ready sections and was launched by crane. In total 378 boats were ordered, 30 of them should be built in Genoa, 15 in Monfalcone, 30 in Toulon and 15 in Nikolaev. Before capitulation of Germany 60 boats were commissioned, 5 more (U2370, U2371, U4708, U4713 and U4714) were destroyed during outfitting. Only six boats shared in operations, and no one of them was lost.
U2365 and U2367 were salvaged in 1956 and commissioned by West German navy as type 240 with data as given in the table
U2323 was lost 26.7.1944 on British aviation mine in Kiel Bight, salvaged in August, 1944 and put to repair which has been not finished till the end of war. U2326 was transferred on reparations to United Kingdom as N35, in 1946 transferred to France but 6.12.1946 was lost as result of underwater accident off Toulon. U2331 was sunk 10.10.1944 at Hel Peninsula as result of accident, salvaged, towed off on repair to Kiel and scuttled there 3.5.1945 by crew. U2338 was sunk 4.5.1945 by Beaufighters of 236th and 254th RAF sqns in Little Belt. U2340 was lost 30.3.1945 during raid of US 8th Air Army bombers to Hamburg. U2342 was lost 26.12.1944 on British aviation mine N off Swinemünde. U2344 was sunk 18.2.1945 as result of collision with U2336 in Mecklenburg Bight. U2348 was transferred on reparations to United Kingdom as N21, BU in 1949.
U2353 was transferred on reparations to the USSR as M-31, BU in 1963. U2359 was sunk 2.5.1945 by Mosquitoes of 235th, 143rd and 248th RAF sqns SW off Göteborg. U2365 was scuttled by crew 8.5.1945 N off Anholt, salvaged in 1956 and entered service with Bundesmarine 15.8.1957 as Hai, she was lost 14.9.1966 as a result of technical accident. U2367 was scuttled by crew 9.5.1945 N off Swinemünde, salvaged in 1956 and commissioned by Bundesmarine as Hecht, BU in 1968.
U4706 was captured by British troops at Kristiansand in May, 1945 and in 1948 transferred to Norway as Knerten, BU in 1954.
Following submarines were scuttled by crews: U2327 and U2332 3.5.1945 at Hamburg; U2330, U4705, U4709, U4711 and U4712 3.5.1945 at Kiel; U2355 3.5.1945 in Kiel Bight; U2333, U2339, U2343, U2346, U2347, U2349, U2357, U2358, U2360, U2362, U2364, U2366, U2368, U2369, U4702, U4703, U4707 and U4710 5.5.1945 in Gelting Bay; U2352, U4701 and U4704 5.5.1945 at Hörup Haff.
U2321, U2322, U2324, U2325, U2328, U2329, U2334, U2335, U2336, U2337, U2341, U2345, U2350, U2351, U2354, U2356, U2361, U2363 surrendered and were scuttled by Allies during operation "Deadlight".
Hai was foundered in cause of technical accident in the North Sea 14.9.1966 with all hands lost, raised 24.9.1966 and broken up in 1968.
