U795 1945

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
U794		718	Germaniawerft, Kiel	2.1943	7.10.1943	11.1943	scuttled 5.5.1945
U795		719	Germaniawerft, Kiel	2.1943	21.3.1944	4.1944	scuttled 3.5.1945

Technical data

Displacement standard, t
Displacement normal, t	236 / 259
Length, m	36.6
Breadth, m	4.50
Draught, m	4.55
No of shafts	1
Machinery	1 Deutz diesel / 2 Germaniawerft-Walter geared hydrogen-peroxide steam-gas turbine or 1 AEG electric motor
Power, h. p.	230 / 5000 or 77
Max speed, kts	9 / 24 or 5
Fuel, t	diesel oil 14 + Walter fuel 40
Endurance, nm(kts)	1840(9) / 117(20) or 76(2)
Armament	2 - 533 TT (bow, 4)
Electronic equipment	FuMO 30 radar, GHG hydrophone, FuMB 3 Bali, FuMB 6 Palau ECM suites
Complement	12
Diving depth operational, m	80

Standard scale images

Graphics

Project history

Experimental submarines of a construction of G. Walter with hydrogen peroxide turbines used H2O2 as oxidizer. Using of this non-standard  fuel-oxidizer mix, known as "Walter-Treibstoff", theoretically allowed to increase strongly submerged machinery power of submarine and submerged speed, allowing to use diesel oil in submerged position.

First built was experimental V80, shown submerged 28kts speed, but appeared too uneconomical. She was followed by experimental V300, included to fleet list as U791, but never completed.

In summer of 1942 orders for 4 submarines of XVIIA series belonging to two different designs: Wa201 and Wk202. These submarines had single-shaft diesel-electric machinery with additional hydrogen peroxide turbine intended for short-term increase of submerged speed. Trials were passed successfully and then 4.1.1943 the order on 12 submarines of XVIIB series was been given out, only 10 such boats were laid down, and building of 7 units was cancelled after the beginning of building of "elektroboot"s of XXI and XXIII series.

Modernizations

1944-1945, some survived: - FuMO 30 radar; + FuMO 61 radar

Naval service

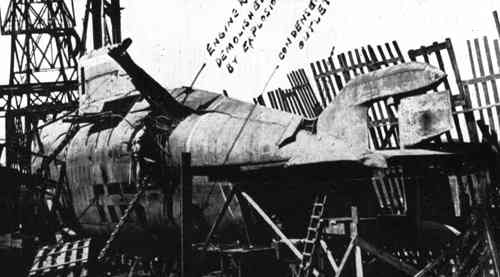

U794 was scuttled 5.5.1945 in Gelting Bay. U795 was blown up by crew 3.5.1945 at Kiel.
