UF1 seagoing submarines (1942)

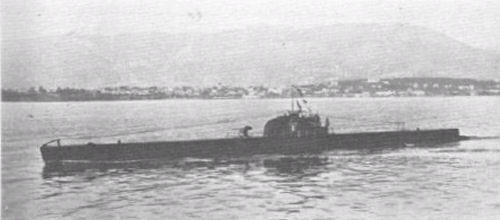

sister-ship L'Aurore

Ships


Name No Yard No Builder Laid down Launched Comp Fate
UF1 (ex-L'Africaine)     A C de la Seine-Maritime, Le Trait, France 12.1937 7.12.1946 10.1949 // --- incomplete to France 1945 (L'Africaine)
UF2 (ex-La Favorite)     A C de la Seine-Maritime, Le Trait, France 12/1937 9.1938 11.1942 stricken 7.1944
UF3 (ex-L'Astrée)     A C Dubigeon, Nantes, France 12.1938 3.5.1946 4.1949 // --- incomplete to France 1945 (L'Astrée)


Technical data


Displacement standard, t



Displacement normal, t

893 / 1170

Length, m

71.8 pp 73.5 oa

Breadth, m

6.50

Draught, m

4.20

No of shafts

2

Machinery

2 Sulzer or Schneider diesels / 2 Schneider-Westinghouse electric motors

Power, h. p.

3000 / 1400

Max speed, kts

14.5 / 9.3

Fuel, t

diesel oil 101

Endurance, nm(kts)2250(15) / 80(5)
Armament

1 x 1 - 88/42 SK C/35, 1 x 1 - 20/65 C/38, 6 - 550 TT (4 bow, 2 stern, 8)

Electronic equipmentFuMO 30 radar, GHG hydrophone, FuMB 1 Metox ECM suite
Complement

44

Diving depth operational, m100


Standard scale images


<i>UF2</i> 1942
UF2 1942


Graphics


sister-ship <i> L'Aurore</i>
sister-ship L'Aurore


Project history

Former French submarines of Aurore class, captured incomplete 13.6.1940 by German troops; completion under German standards of UF2 begun 31.10.1940. Exact data of conversion is not known: most likely, trainable TT was not installed, and German origin gun was installed. 5.5.1941 she was renamed UF2 and commissioned by Kriegsmarine 5.11.1942. Sister-ships L`Africaine and L`Astree received German numbers UF1 and UF3, but never commissioned and completed after war for French Navy.

Modernizations

1943-1944, presumably: - FuMB 1 Metox ECM suite; + FuMB 3 Bali, FuMB 6 Palau ECM suites

Naval service

UF2 was stricken 5.7.1944 and in 1945, presumably, scuttled at Gotenhafen.

L'Aurore
