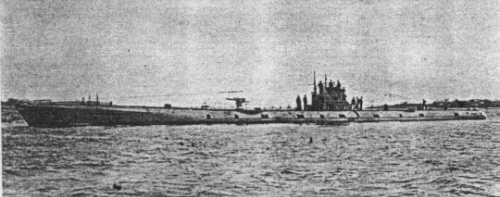

U95 1917

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
U93		257	Germaniawerft, Kiel	1915	15.12.1916	2.1917	lost 1.1918
U94		258	Germaniawerft, Kiel	1915	5.1.1917	3.1917	to United Kingdom 11.1918
U95		259	Germaniawerft, Kiel	1915	20.1.1917	4.1917	collision 7.1.1918
U96		260	Germaniawerft, Kiel	1916	15.2.1917	4.1917	to United Kingdom 11.1918
U97		261	Germaniawerft, Kiel	1916	4.4.1917	5.1917	lost 21.11.1918
U98		262	Germaniawerft, Kiel	1916	28.2.1917	5.1917	to United Kingdom 1.1919
U105		274	Germaniawerft, Kiel	1916	16.5.1917	7.1917	to France 11.1918 (Jean Autric)
U106		275	Germaniawerft, Kiel	1916	12.6.1917	7.1917	sunk 8.10.1917
U107		276	Germaniawerft, Kiel	1916	28.6.1917	8.1917	to United Kingdom 11.1918
U108		277	Germaniawerft, Kiel	1916	11.10.1917	12.1917	to France 11.1918 (Léon Mignot)
U109		278	Germaniawerft, Kiel	1916	25.9.1917	11.1917	sunk 26.1.1918
U110		279	Germaniawerft, Kiel	1916	28.7.1917	9.1917	sunk 15.3.1918
U111		280	Bremer Vulkan, Vegesack / Germaniawerft, Kiel	1916	5.9.1917	12.1917	to USA 11.1918
U112		281	Bremer Vulkan, Vegesack / Germaniawerft, Kiel	1916	26.10.1917	6.1918	to United Kingdom 11.1918
U113		282	Bremer Vulkan, Vegesack / Germaniawerft, Kiel	1916	29.9.1917	2.1918	to France 11.1918
U114		283	Bremer Vulkan, Vegesack / Germaniawerft, Kiel	1916	27.11.1917	6.1918	to Italy 11.1918
U160		651	Bremer Vulkan, Vegesack	1917	27.2.1918	5.1918	to France 11.1918
U161		652	Bremer Vulkan, Vegesack	1917	23.3.1918	6.1918	to United Kingdom 11.1918
U162		653	Bremer Vulkan, Vegesack	1917	20.4.1918	7.1918	to France 11.1918 (Pierre Marrast)
U163		654	Bremer Vulkan, Vegesack	1917	1.6.1918	8.1918	to Italy 11.1918
U164		655	Bremer Vulkan, Vegesack	1917	7.8.1918	10.1918	to United Kingdom 11.1918
U165		656	Bremer Vulkan, Vegesack	1917	21.8.1918	11.1918	lost 18.11.1918
U166		657	Bremer Vulkan, Vegesack	1917	6.9.1918	3.1919 // ---	completed for France (Jean Roulier)
U167		658	Bremer Vulkan, Vegesack	1917	28.9.1918	4.1919 // ---	completed for United Kingdom
U168		659	Bremer Vulkan, Vegesack	1917	19.10.1918	---	BU incomplete 1919
U169		660	Bremer Vulkan, Vegesack	1917	15.11.1918	---	BU incomplete 1919
U170		661	Bremer Vulkan, Vegesack	1917	1918	---	BU incomplete 1919
U171		662	Bremer Vulkan, Vegesack	1917	1918	---	BU incomplete 1919
U172		663	Bremer Vulkan, Vegesack	1917	1918	---	BU incomplete 1919
U201		671	Bremer Vulkan, Vegesack	1918	---	---	BU on the slip 1919
U202		672	Bremer Vulkan, Vegesack	1918	---	---	BU on the slip 1919
U203		673	Bremer Vulkan, Vegesack	1918	---	---	BU on the slip 1919
U204		674	Bremer Vulkan, Vegesack	1918	---	---	BU on the slip 1919
U205		675	Bremer Vulkan, Vegesack	1918	---	---	BU on the slip 1919
U206		676	Bremer Vulkan, Vegesack	1918	---	---	BU on the slip 1919
U207		677	Bremer Vulkan, Vegesack	1918	---	---	BU on the slip 1919
U208		678	Bremer Vulkan, Vegesack	1918	---	---	BU on the slip 1919
U209		679	Bremer Vulkan, Vegesack	1918	---	---	BU on the slip 1919

Technical data

Displacement standard, t
Displacement normal, t	U93 - 95: 838 / 1000 U96 - 98: 837 / 998 U105 - 110: 798 / 1000 U111 - 114: 798 / 996 U160 - 172: 821 / 1002 U201 - 209: 820 / 1000
Length, m	71.6
Breadth, m	6.30
Draught, m	U93 - 98: 3.94 U105 - 110: 3.90 U111 - 114: 3.76 U160 - 172: 3.88 U201 - 209: 3.87
No of shafts	2
Machinery	U93 - 95, 105 - 110, 201 - 209: 2 MAN diesels / 2 SSW electric motors U96 - 98, 111 - 114: 2 Germania diesels / 2 SSW electric motors
Power, h. p.	U93 - 95, 105 - 110: 2400 / 1200 U96 - 98, 111 - 114: 2300 / 1200 U160 - 172, 201 - 209: 2400 / 1230
Max speed, kts	U93 - 95: 16.8 / 8.6 U96 - 98: 16.9 / 8.6 U105 - 114: 16.4 / 8.4 U160 - 172: 16.2 / 8.2 U201 - 209: 16 / 9
Fuel, t	U93 - 95, 105 - 110: diesel oil 107 U96 - 98, 111 - 114: diesel oil 104 U160 - 172, 201 - 209: diesel oil 103
Endurance, nm(kts)	U93 - 95: 9020(8) / 52(5) U96 - 98: 8290(8) / 47(5) U105 - 110: 9280(8) / 50(5) U111 - 114: 8300(8) / 50(5) U160 - 172: 8500(8) / 50(5) U201 - 209: 8500(8) / 60(4.5)
Armament	U93 - 95: 1 x 1 - 88/27 TK L/27 C/08, 6 - 500 TT (4 bow, 2 stern, 12 - 16) U96 - 98: 1 x 1 - 105/43 TK L/45 C/16, 6 - 500 TT (4 bow, 2 stern, 12 - 16) U105, 106, 108, 109: 1 x 1 - 105/43 TK L/45 C/16, 1 x 1 - 88/27 TK L/30 C/08, 6 - 500 TT (4 bow, 2 stern, 12 - 16) U107, 110, 111, 113: 1 x 1 - 105/42 Utof L/45 C/16, 1 x 1 - 88/27 TK L/30 C/08, 6 - 500 TT (4 bow, 2 stern, 12 - 16) U112, 114, 161 - 172, 201 - 209: 1 x 1 - 105/42 Utof L/45 C/16, 6 - 500 TT (4 bow, 2 stern, 12 - 16) U160: 2 x 1 - 105/42 Utof L/45 C/16, 6 - 500 TT (4 bow, 2 stern, 12 - 16)
Complement	U93 - 98, 105 - 114: 36 U160 - 172, 201 - 209: 39
Diving depth operational, m	50

Standard scale images

Graphics

Project history

War orders G (U93-98), K (U105-114), R (U160-172) and Y (U201-212). Double-hulled. They had a diving time of 66 seconds (later boats to 45 seconds), and in most respects resembled previous classes. U210-212 of U201 group (War order Y) were cancelled before they were laid down. Also were cancelled very similar U229-246 by Germaniawerft, Kiel, U247-262 by Bremer Vulkan, Vegesack and U263-276 by Schichau, Danzig (all of War order AD).

Modernizations

1917, U93, 94: + 1 x 1 - 105/42 Utof L/45 C/16

1917, U96: + 1 x 1 - 88/27 TK L/30 C/08

1918, U95: + 1 x 1 - 105/43 TK L/45 C/16

Naval service

U93 was lost by unknown cause in January 1918 in English Channel. U95 collided 7.1.1918 in English Channel with British s/s Braeneil. U97 was lost by unknown cause in the North Sea en route for transfer to UK. U106 was sunk in the North Sea 8.10.1917 by mines and nets. U109 was sunk in the English Channel 26.1.1918 by gunfire of British trawler Beryl III and mines. U110 was sunk 15.3.1918 in the Atlantic by gunfire and depth charges of British destroyers Moresby and Michael. U165 was lost by unknown cause en route to transfer 18.11.1918 in Weser.
