U31 type seagoing submarines (U31) (2005-2007)





U34 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
U31 S181   Howaldtswerke, Kiel 1.7.1998 20.3.2002 19.10.2005 in service (2019)
U32 S182   Thyssen Nordseewerke, Emden 11.7.2000 4.12.2003 19.10.2005 in service (2019)
U33 S183   Howaldtswerke, Kiel 30.4.2001 13.9.2004 13.6.2006 in service (2019)
U34 S184   Thyssen Nordseewerke, Emden 12.2001 4.7.2005 3.5.2007 in service (2019)


Technical data


Displacement standard, t

1370

Displacement normal, t

1500 / 1830

Length, m

55.9

Breadth, m

6.90

Draught, m

5.75

No of shafts

1

Machinery

1 MTU 16V396 diesel-generator, 1 Siemens electric motor / AIP (9 Siemens Polymer Electrolytic Membrane fuel cells)

Power, h. p.

1415 / 3875 / 416

Max speed, kts

12 / 20

Fuel, t

diesel oil

Endurance, nm(kts)8000(8) / 420(8) / 3000(4)
Armament

6 - 533 TT (bow, 12 DM-2A4), 24 mines in minelaying belt

Electronic equipmenttype 1007 radar, DBQS-40 sonar suite (FAS3-1, PRS3-15, AN 5039A1, FMS-52, DSQS-21DG, TAS-3), FL-1800U ECM suite, TAÜ torpedo decoy system (4x TCM-2000 launchers), MSI90U CCS
Complement27
Diving depth operational, m300


Standard scale images


<i>U31 </i>2010
U31 2010


Graphics

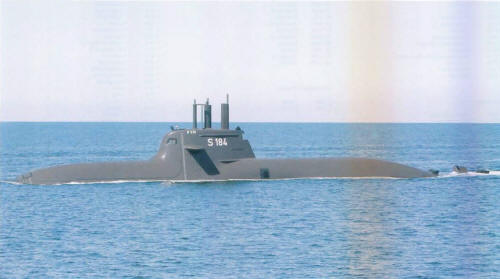

<i>U34 </i>2007
U34 2007


Project history

Type 212A. Program development began in 1988. The contract for detailed design and construction was signed with a German Submarine Consortium in 1994 but did not take effect until the German FY95 budget was approved.

Use a nonmagnetic Type 1.3964 austenitic steel pressure hull, 6.80m in diameter forward, tapering via a conical section to 5.75m abaft the control room; i.e., the boats are single-hulled forward and double-hulled aft. There are two accommodation decks forward. The engineering plant is suspended in a raft for sound reduction, with individual equipment also using soundproof mountings. The air-independent propulsion (AIP) system employs a solid-polymer, metal-hydrid fuel-cell system. Fitted with Hawker sodium-sulfide batteries. Hydrazine gas generators are used to blow ballast tanks for emergency surfacing. There are no separate watertight compartments within the pressure hull to improve silencing.

The sonar suite incorporates six passive ranging transducers, flank arrays, a 0.3- to 12-kHz bow array, mine-avoidance set, echo sounder, 12-24 self-noise sensors, and a towed passive linear array (10-1,200 Hz), the first of its type in a German submarine and capable of providing frequency resolution to 0.01 Hz. The mine-avoidance sonar will operate at 30 kHz for detection and 70 kHz for classification. The torpedo tubes will use the water-ram ejection method, using two water rams: the torpedo tube arrangement is asymmetrical, with two rows of three tubes, four of which are to port of the centerline.

Modernizations

None.

Naval service

No significant events.
