"XXVIIA HECHT" type midget submarines (U2111) (1944)







Ships


Names Builders Commissioned Losses Transfers Discarding
U2111 - 2200, U2251 - 2300

Germaniawerft, Kiel: U2111 - 2113

CRDA, Monfalcone with assisting of Simmering,Graz and Pauker, Wien: U2251 - 2300

5-8/1944: U2111 - 2113, 2251 - 2300

U2114 - 2200 (incomplete), losses are unknown

none

unknown


100 - 1000 t displacement/ BRT tonnage vessels


Names U2111 - 2200, U2251 - 2300

Builders

Germaniawerft, Kiel: U2111 - 2113

CRDA, Monfalcone with assisting of Simmering,Graz and Pauker, Wien: U2251 - 2300

Commissioned

5-8/1944: U2111 - 2113, 2251 - 2300

Losses

U2114 - 2200 (incomplete), losses are unknown

Transfers

none

Discarding unknown


Technical data


Displacement standard, t
Displacement normal, t

11.8 - 12.5 / 17.2

Length, m

10.5

Breadth, m

1.30

Draught, m

1.40

No of shafts

1

Machinery

1 AEG electric motor

Power, h. p.

12

Max speed, kts

5.6 / 6

Fuel, t

none

Endurance, nm(kts)45-78(3)
Armament

50 units: 1 - 533 TT (bottom-drop collar)

3 units: 1 mine

Complement

2

Diving depth operational, m30

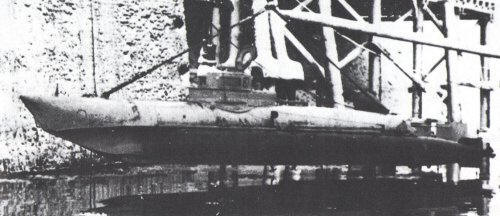

Graphics






Project history

Design was developed in early 1944 on the basis of captured Britsh midget submarine. Intended for actions against stationary targets (ships on anchorages and in harbours) and were originally armed with dropped explosive charge supposed to be dumped under enemy ship. Very soon armament was replaced by a torpedo, but three boats carried magnetic mines instead of torpedoes. In the absence of a surface machinery and a gyro-compass they differed by small action radius and thereof did not participate in operations.

Modernizations

None.

Naval service

No significant events.
