NYMPHE floating AA batteries (1898 / 1941)

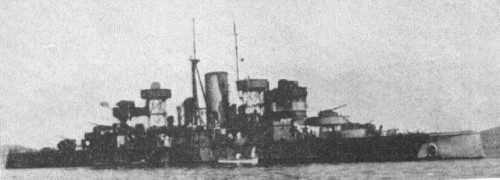

Thetis

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Thetis (ex-Harald Haarfagre)   648 Armstrong, Elswick, UK 1896 4.1.1897 1898 // 1.2.1941 surrendered 5.1945, to Norway 1946, BU
Nymphe (ex-Tordenskjöld)   649 Armstrong, Elswick, UK 1896 18.3.1897 1898 // 1.2.1941 damaged 5.1945, never repaired


Technical data


Displacement standard, t3380
Displacement full, t3858
Length, m

85.0 wl 92.7 oa

Breadth, m

14.8

Draught, m

5.02 normal 5.38 deep load

No of shafts

2

Machinery

2 VTE, 3 cylindrical boilers

Power, h. p.

4500

Max speed, kts14
Fuel, t

coal 400

Armour, mmHarvey steel; belt: 203 - 76, bulkheads: 203, deck: 51 - 37
Armament

6 x 1 - 105/42 SK C/32, 2 x 1 - 40/56 FlaK 28, 2 x 4 - 20/65 C/38, 6 x 1 - 20/65 C/38

Complement


Standard scale images


<i>Nymphe</i> 1944
Nymphe 1944


Graphics


<i>Thetis</i>
Thetis


Project history

Former Norwegian coast defence battleships, 9.4.1940 they were captured by German troops at Horten where they were on conservation. Both were converted to floating AA batteries at Horten. They were used for air defence of anchorages, for example, Thetis protected basing of battleship Tirpitz in Kaa Fjord.

Ship protection

37mm deck was connected with lower edge of main belt by 51mm slopes. 203mm main belt was closed by 203mm bulkheads abreast barbettes, ship ends were protected by 76mm belt.

Modernizations

1944, both: + FuMO 212 or FuMO 213 radar

Naval service

Nimphe in May, 1945 was damaged by British aircraft at Svolvaer, run aground and late that year broken up. Thetis was returned to Norway and BU in 1947.
