HELA command ship (1940)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Hela   717 Stülcken, Hamburg 1937 28.12.1939 16.10.1940 surrendered 5.1945, to USSR 1946 (Ангара [Angara])


Technical data


Displacement standard, t

2113

Displacement full, t2520
Length, m

92.5 wl 99.8 oa

Breadth, m

12.7

Draught, m

3.50 normal 4.00 max

No of shafts

2

Machinery

2 MAN diesels

Power, h. p.

4720

Max speed, kts

16.3

Fuel, t

diesel oil 280

Endurance, nm(kts)2000(15)
Armament

2 x 1 - 105/42 SK C/32, 1 x 1 - 37/80 SK C/30, 2 x 1 - 20/65 C/38

Complement

259



Standard scale images

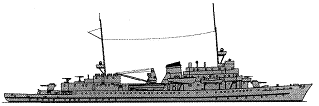

<i>Hela</i> 1940
Hela 1940


Project history

Officially classified as tender, but as a matter of fact was a command ship. Hela was ordered in 1936 and built about three years, that has been called by a delay of availability of MAN diesels. She had extensive accommodations for headquarters, bunkrooms and cabins for its personnel (on 108 persons), and also extensive communication equipment. The original project provided catapult and seaplane, instead of which subsequently additional runabouts were received.

Modernizations

None.

Naval service

On reparations Hela was transferred to the USSR as Angara and remained in the service on present time.
