BRUMMER gunnery training ship / minelayer (1936)





Brummer before war

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Brummer   894 Deschimag, Bremen 27.12.1934 29.5.1935 8.2.1936 sunk 14.4.1940


Technical data


Displacement standard, t2410
Displacement full, t

3354

Length, m

108.0 wl 112.9 oa

Breadth, m

13.5

Draught, m

3.20 normal 4.20 deep load

No of shafts

2

Machinery

2 sets Deschimag geared steam turbines, 2 Wagner boilers

Power, h. p.

10000

Max speed, kts20
Fuel, t

oil 365

Endurance, nm(kts)2400(15)
Armament

2 x 2 - 105/60 SK C/33, 2 x 1 - 88/42 SK C/35, 2 x 2 - 37/80 SK C/30, 2 x 1 - 20/65 C/30, 450 mines

Complement182 + 298 cadets


Graphics

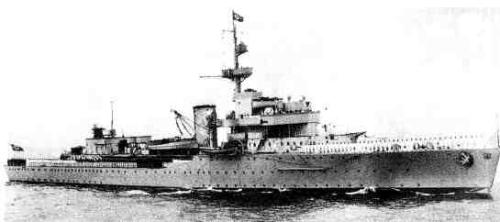

<i>Brummer</i> before war
Brummer before war

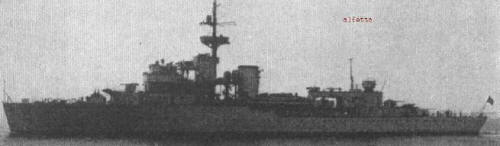

  <i> Brummer</i>
  Brummer


Project history

Ship was ordered as "Ersatz Hai". Purpose-built ship for training of an antiaircraft artillery personnel, armed by various samples of antiaircraft guns and MGs (105mm/65, 88mm/45, 37mm/83 and 20mm/65). In wartime she could be used as a minelayer (she can carry up to 450 mines) or command ship. Besides 182 crew members ship took aboard up to 298 cadets. As well as in a case with Bremse, machinery had experimental character.

Brummer was first German combat ship with machinery used high parameters steam, consisting of 2 Wagner boilers (70atm, 460°C) and twin-shaft Deschimag turbines, subsequently applied on German destroyers. On trials Brummer achieved 23kts at 10500hp. Operating experience has shown low reliability of machinery.

Modernizations

1939: + 6 x 1 - 20/65 C/30

Naval service

14.4.1940 Brummer was torpedoed by British submarine Sterlet in Skagerrack and has sunk next day.
