SCHÜTZE inshore minesweepers (1959 - 1963)





Castor 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Mira M1050   Abeking & Rasmussen, Lemwerder   16.12.1959 11.1960 hulk 12.1973
Castor M1051   Abeking & Rasmussen, Lemwerder   12.7.1962 12.1962 stricken 8.1990
Krebs M1052   Abeking & Rasmussen, Lemwerder   26.1.1959 7.1959 stricken 10.1973
Orion M1053   Abeking & Rasmussen, Lemwerder   10.8.1961 2.1962 stricken 11.1973
Pollux M1054   Abeking & Rasmussen, Lemwerder   15.9.1960 4.1961 stricken 5.1992
Sirius M1055   Abeking & Rasmussen, Lemwerder   15.3.1961 10.1961 stricken 11.1990
Rigel M1056   Abeking & Rasmussen, Lemwerder   2.4.1962 9.1962 stricken 3.1990
Regulus M1057   Abeking & Rasmussen, Lemwerder   18.12.1961 6.1962 stricken 9.1990
Mars M1058   Abeking & Rasmussen, Lemwerder   1.12.1960 7.1961 stricken 2.1992
Spica M1059   Abeking & Rasmussen, Lemwerder   25.5.1960 5.1961 stricken 9.1992
Scorpion M1060   Abeking & Rasmussen, Lemwerder   21.5.1963 10.1963 stricken 5.1990
Stier M1061, 1966- Y849   Abeking & Rasmussen, Lemwerder   30.10.1958 6.1961 mine clearance diving boat 1966, stricken 3.1995
Schütze M1062   Abeking & Rasmussen, Lemwerder   20.5.1958 4.1959 stricken 11.1992
Waage M1063   Abeking & Rasmussen, Lemwerder   9.4.1959 3.1962 stricken 6.1992
Deneb M1064   Schürenstedt, Bardenfleth   11.9.1961 12.1961 stricken 9.1989
Jupiter M1065   Schürenstedt, Bardenfleth   15.12.1961 5.1961 stricken 9.1989
Pegasus M1066   Schlichting-Werft, Travemünde   1961 5.1962 stricken 12.1973
Atair M1067   Schlichting-Werft, Travemünde   1960 9.1961 stricken 6.1988
Algol M1068   Abeking & Rasmussen, Lemwerder   23.1.1963 6.1963 hulk 7.1971
Wega M1069   Abeking & Rasmussen, Lemwerder   10.10.1962 4.1963 stricken 12.1988
Perseus M1090   Schlichting-Werft, Travemünde   1960 3.1961 stricken 9.1988
Steinbock M1091   Abeking & Rasmussen, Lemwerder   25.8.1958 10.1960 stricken 3.1974
Pluto M1092   Schürenstedt, Bardenfleth   9.8.1960 12.1960 stricken 7.1987
Neptun M1093   Schlichting-Werft, Travemünde   1960 9.1960 stricken 2.1990
Widder M1094   Schürenstedt, Bardenfleth   12.3.1959 9.1960 hulk 7.1989
Herkules M1095   Schlichting-Werft, Travemünde   1960 12.1960 stricken 8.1987
Fische M1096   Abeking & Rasmussen, Lemwerder   14.7.1959 1.1960 stricken 4.1989
Gemma M1097   Abeking & Rasmussen, Lemwerder   6.10.1959 5.1960 stricken 12.1987
Capella M1098   Abeking & Rasmussen, Lemwerder   26.2.1960 6.1960 stricken 2.1974
Uranus M1099   Schürenstedt, Bardenfleth   1960 7.1960 stricken 8.1971


Technical data


Displacement standard, t

241

Displacement full, t267
Length, m

44.1 wl 47.4 oa

Breadth, m

6.90

Draught, m

2.30

No of shafts2
Machinery

M1050-1059: 2 Mercedes-Benz diesels

M1060-1069, 1090-1099: 2 Maybach diesels

Power, h. p.

M1050-1059: 4500

M1060-1069, 1090-1099: 4760

Max speed, kts

25

Fuel, t

diesel oil 26

Endurance, nm(kts)1000(18)
Armament

M1050-1056, 1058-1062, 1065, 1068, 1069, 1090-1096, 1098, 1099: 1 x 1 - 40/70 Bofors 315, mechanical, acoustic and magnetic minesweeping gear

M1057, 1063, 1064, 1066, 1067, 1097: 2 x 1 - 40/70 Bofors 315

Electronic equipmentTRS-N radar
Complement31


Standard scale images


<i>Schütze </i>1975
Schütze 1975


Graphics

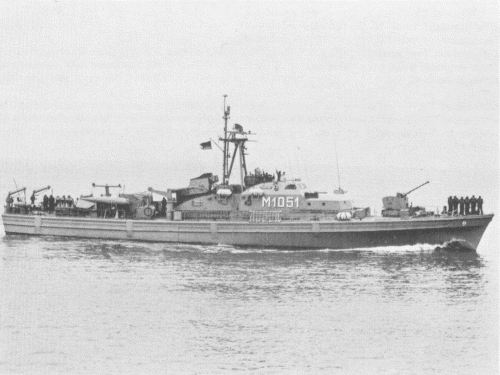

<i>Castor </i>1979
Castor 1979

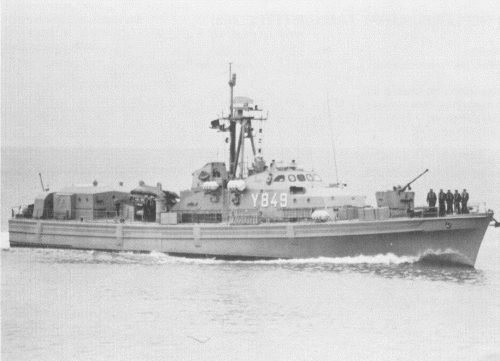

<i>Stier </i>1979
Stier 1979


Project history

These fast minesweepers of the Types 340/341, designed by Abeking & Rasmussen 1957-59, were built of wood and non-magnetic materials. They resembled the last R-boat type of the Kriegsmarine and at first were designated 'SM-boot 55' They had subsidiary roles as coastal patrol craft and minelayers. As planned the boats were to have had Voith-Schneider propellers, but results with the first prototypes Schütze and Krebs were unsatisfactory and all boats were given two shafts and CP propellers. All boats from M1060 onwards had two Maybach diesels of 4760bhp (3530kW) and were referred to as the Type 341.

Modernizations

early 1960s, Gemma, Pegasus, Waage, Deneb, Regulus, Altair: - 1 x 1 - 40/70; + mechanical, acoustic and magnetic minesweeping gear

1966, Stier: - mechanical, acoustic and magnetic minesweeping gear; + diving equipment

Naval service

No significant events.
