Hansa 1975

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

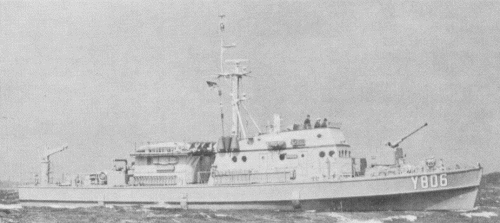

Hansa	W22, 1.1968- M2662, 1969- Y806, 1987- M1052		Kröger-Werft, Schacht-Audorf		18.11.1957	7.1958	mine diver boat 1969, stricken 1.1992

Technical data

Displacement standard, t	155
Displacement full, t	175
Length, m	34.0 wl 35.2 oa
Breadth, m	6.60
Draught, m	1.90
No of shafts	1
Machinery	1 Mercedes-Benz MB820Db diesel
Power, h. p.	1000
Max speed, kts	14
Fuel, t	diesel oil 14
Endurance, nm(kts)	1500(12)
Armament	1 x 1 - 40/70 Bofors 315, mechanical, acoustic and magnetic minesweeping gear
Electronic equipment	TRS-N radar
Complement	20

Standard scale images

Graphics

Project history

 Hansa and Niobe were designed in 1955-56 as coast guard boats of the Types 361 and 360, differed in the propulsion arrangement: Hansa had one shaft, Niobe two.  These wooden boats were the first to use non-magnetic materials. In 1968 they were reclassified as riverine minesweepers Types 392 and 391, their pennant number changing from 'W' to 'M' prefix.

Modernizations

1969: - minesweeping gear; + diving equipment

Naval service

No significant events.
