FR1 river minesweeping boats (1938 - 1939)





FR1

Ships


Names Builders Commissioned Losses Transfers Discarding

FR1 - 12

Lürssen, Vegesack: FR1-12

1938: FR1 - 6

1939: FR7 - 12

FR2 (26.10.1944), FR5 (5/1945), FR6 (6.9.1941), FR8 (5/1945), FR11 (7.10.1944), FR12 (11.10.1941)

none

surrendered 5.1945: FR1, FR3, FR4, FR7, FR9, FR10



Technical data


Displacement standard, t
Displacement full, t

FR1 - 6: 21

FR7 - 12: 27

Length, m

FR1 - 6: 15.4

FR7 - 12: 17.4

Breadth, m

3.30

Draught, m

FR1 - 6: 0.80

FR7 - 12: 0.85

No of shafts

2

Machinery

2 Kämper diesels

Power, h. p.

FR1 - 6: 260

FR7 - 12: 300

Max speed, kts

13

Fuel, t

diesel oil 1.0

Endurance, nm(kts)
Armament

1 x 1 - 20/65 C/38, mechanical minesweeping gear

Complement

9 - 10



Standard scale images


<i>FR1</i> 1938
FR1 1938


Graphics

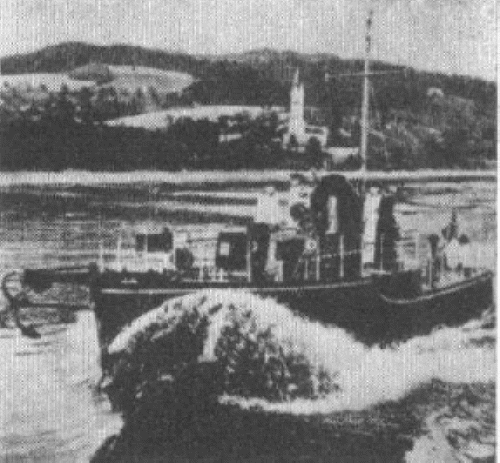

<i>FR1</i>
FR1


Project history

Medium (Mittlere Räumboot, MR), small (Kleine Räumboot, KR) and river (Fluß-Räumboot, FR) R-boats were minesweeping boats for service on shallow-water and lake-river areas.

Modernizations

1943, all survived: - 1 x 1 - 20/65; + 1 x 1 - 15/84, 1 x 1 - 13.2/76.

Naval service

No significant events.
