S10 torpedo boats (1935)





S12

Ships


Names Builders Commissioned Losses Transfers Discarding

S10, 3.1942- V5507, later S10

S11, 3.1942- V5508, later S11

S12, 4.1942- V5504, later S12

S13, 3.1942- V5510, later S13

Lürssen, Vegesack: S10 -13

3-12/1935: S10 - 13

none

USA 1945: S10 (to Norway 1947), S12 (scuttled 2.5.1946)

Soviet Union 2.1946: S11 (ТК-1002 [TK-1002])

United Kingdom 1945: S13 (sold)

surrendered 5.1945: S10 - 13


Technical data


Displacement standard, t

76

Displacement full, t92
Length, m

32.4

Breadth, m

5.06

Draught, m

1.42

No of shafts

3

Machinery

3 Daimler-Benz MB502 diesels

Power, h. p.

3960

Max speed, kts

35

Fuel, tdiesel oil 10.5
Endurance, nm(kts)758(22)
Armament

1 x 1 - 20/65 C/30, 2 - 533 TT

Complement18 - 23


Standard scale images


<i>S10</i> 1935
S10 1935


Graphics

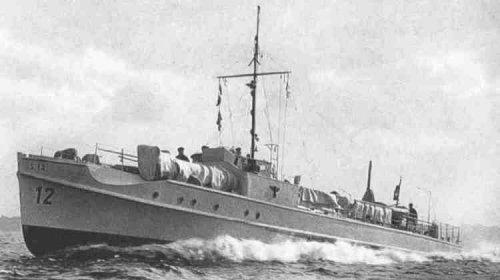

<i> S12</i>
S12


Project history

Torpedo motorboats (Schnellboote) were the development of successful prototype created by F. Lürssen in 1929. General characteristic lines for all series were round-bilge hull with small deadrise, triple-shaft diesel machinery, presence of two auxiliary rudders for creation of "Lürssen effect" (fitting of rudders under an angle to centreline for speed increase) and a bow arrangement of two TTs. Composite hull included light alloy framing, wooden planking and steel engine seating. Boats of early series to beginning of war were considered become outdated and were used for training.

Modernizations

1941, most: - 1 x 1 - 20/65; + 2 x 1 - 20/65 C/38

1942 - 1943, all: + 6 DCs or mines

Naval service

S11 on reparations was transferred to the USSR.
