KROKODIL medium landing ships (1945 / 1958)

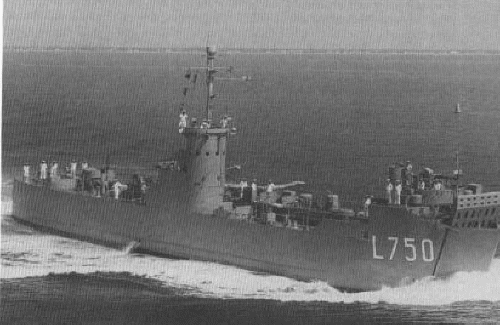

Krokodil 1958
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Krokodil (ex-LSM537) | L750 | Brown SB, Houston, USA | 1945 | 1945 | 11.1945 // 5.9.1958 | stricken 12.1972 | |
| Eidechse (ex-LSM491) | L751 | Brown SB, Houston, USA | 1945 | 1945 | 4.1945 // 5.9.1958 | stricken 3.1973 | |
| Salamander (ex-LSM553) | L752 | Charleston N Yd, USA | 2/1945 | 3.3.1945 | 9.1945 // 5.9.1958 | stricken 2.1969 | |
| Viper (ex-LSM558) | L753 | Charleston N Yd, USA | 4/1945 | 28.4.1945 | 11.1945 // 5.9.1958 | stricken 3.1969 |
Technical data
| Displacement standard, t | 520 |
|---|---|
| Displacement full, t | 1095 |
| Length, m | 59.9 wl 62.0 oa |
| Breadth, m | 10.5 |
| Draught, m | landing: 1.07 fore, 2.13 aft |
| No of shafts | 2 |
| Machinery | 2 General Motors diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 12.5 - 13.2 |
| Fuel, t | diesel oil 196 |
| Endurance, nm(kts) | 2500 (12) |
| Armament | 1 x 2 - 40/60 Mk 1 |
| Military load | 5 medium or 3 heavy tanks or 6 LVT or 9 DUKW, 48 - 54 marines |
| Electronic equipment | radar |
| Complement | 60 |
Standard scale images
Eidechse 1965
Krokodil 1965
Graphics
Krokodil 1958
Project history
Former USN LSM1 class medium landing ships, commissioned by Bundesmarine as Type 550. Krokodil was designed as a command and hospital craft and therefore received a helicopter platform over the stern and a new hinged bow-ramp while the folding doors were removed.
Modernizations
None.
Naval service
No significant events.
