TA14 torpedo boat (1927 / 1943)

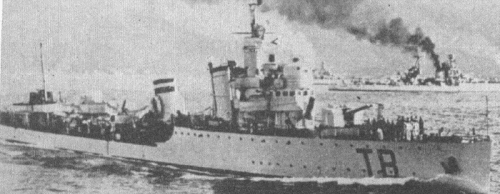

TA14 as Turbine
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| TA14 (ex-Turbine) | Odero, Sestri Ponente, Italy | 3.1925 | 21.4.1927 | 8.1927 // 9.1943 | sunk 15.9.1944 |
Technical data
| Displacement standard, t | 1073 |
|---|---|
| Displacement full, t | 1670 |
| Length, m | 93.7 wl 94.1 oa |
| Breadth, m | 9.20 |
| Draught, m | 3.64 |
| No of shafts | 2 |
| Machinery | 2 sets Parsons geared steam turbines, 3 Thornycroft boilers |
| Power, h. p. | 40000 |
| Max speed, kts | 27 |
| Fuel, t | oil 400 |
| Endurance, nm(kts) | 2150(15) |
| Armament | 2 x 2 - 120/45 M1926, 3 x 1 - 37/54 M1939, 4 x 2 - 20/65 M1935, 10 x 1 - 20/65 M1939, 1 x 3 - 533 TT, 2 DCT |
| Electronic equipment | FuMO 28 radar |
| Complement | 180 |
Standard scale images
TA14 1944
Turbine 1940
Graphics
TA14 as Turbine
Project history
Ex-Italian destroyer, the lead ship of of the same name class, captured at Piraeus in September, 1943. Real max speed was 27kts.
Modernizations
None
Naval service
Acted in Aegean Sea. TA14 was damaged by Allied aircraft 1.2.1944, hard damaged as a result of sabotage 19.6.1944 and lost 15.9.1944 at Salamis during raid of American bombers.
