WESTFALEN catapult vessel (1905 / 1940)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Westfalen   208 Tecklenborg, Geestemünde   14.11.1905 30.12.1906 // 1940 sunk 7.9.1944


Technical data


Displacement standard, t
Displacement full, t10550
Length, m

128.5

Breadth, m

16.1

Draught, m

8.52

No of shafts

1

Machinery

1 VQE, 4 boilers

Power, h. p.

2750

Max speed, kts

11.5

Fuel, t

coal

Armament

2 x 1 - 20/65 C/38, 1 14t catapult, seaplane (Do 18)

Complement54


Standard scale images

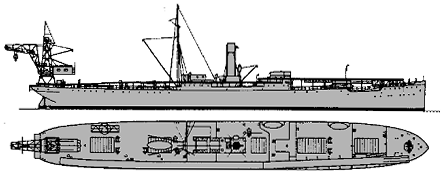

<i>Westfalen</i> 1940
Westfalen 1940


Project history

Ex-cargo vessel of Nord-Deutsche Lloyd, completed in 1906. Converted to catapult vessel for Deutsche Lűfthansa in 1933. Seaplanes were handled by 15t crane.

Modernizations

none.

Naval service

Westfalen was sunk by mine 7.9.1944 in Skagerrak.
