HELA aviso (1896)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Hela   108 Weser, Bremen 1893 28.3.1895 3.5.1896 tender 1910, sunk 13.9.1914


Technical data


Displacement normal, t

2027

Displacement full, t

2082

Length, m

105.0 oa 104.6 wl

Breadth, m

11.0

Draught, m

4.46 mean 4.64 deep load

No of shafts

2

Machinery

2 VTE, 6 locomotive boilers

Power, h. p.

6000

Max speed, kts

20

Fuel, t

coal 340

Endurance, nm(kts)

3000(12)

Armour, mmsteel; deck: 20 with 25mm slopes, glacis: 40, CT: 30
Armament

4 x 1 - 88/27 SK L/30 C/89, 6 x 1 - 50/37 SK L/40 C/92, 1 - 450 TT (bow), 2 x 1 - 450 TT

Complement

178

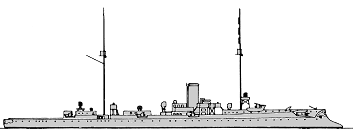

Standard scale images


<i>Hela</i> 1899
Hela 1899


Project history

With this enlarged version of the Jagd, the aviso was developing into a light cruiser. This 1893 design had a 25-20mm armoured deck and a very pronounced ram bow. She was considered a good seaboat, and served for two years abroad, as well as with the home fleet.

Ship protection

There was protective deck with 30mm flat and 25mm slopes, engine glacis had 100mm armour on 180mm wooden backing. CT had 30mm sides.

Modernizations

1905: boilers were replaced by 8 Marine, funnel was replaced by two; - 2 x 1 - 88/27, 2 x 1 - 450 TT; + 2 - 450 TT (beam)

Naval service

From 1910 she was used as a fleet tender. In 1914 she was used for patrol duty, and was torpedoed by the British submarine E9 in the North Sea 13.9.1914.
