GREIF aviso (1887)





Greif 1890

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Greif   26 Germaniawerft, Kiel 1885 29.7.1886 9.7.1887 special service vessel 6.1911, hulk 10.1912


Technical data


Displacement normal, t

2050

Displacement full, t

2266

Length, m

102.6 oa 99.5 wl

Breadth, m

9.75

Draught, m

4.22 mean 4.34 deep load

No of shafts

2

Machinery

2 HC, 6 cylindrical double-ended boilers

Power, h. p.

5400

Max speed, kts

18

Fuel, t

coal 350

Endurance, nm(kts)

2180(12)

Armament

2 x 1 - 105/32 RK L/35 C/86, 10 x 5 - 37/27 RV L/30

Complement

170

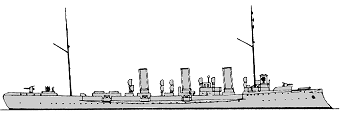

Standard scale images


<i>Greif</i> 1889
Greif 1889

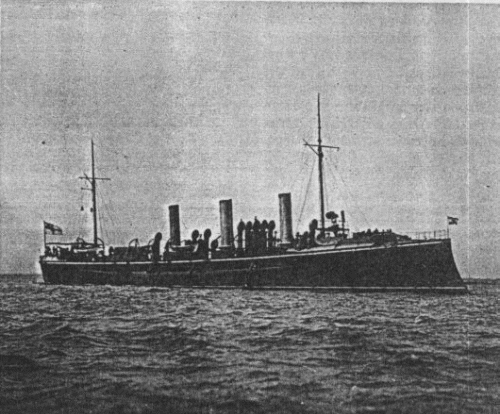

Graphics


<i>Greif </i>1890
Greif 1890


Project history

The Greif, a larger version of the Blitz design but without the torpedo armament, represents a further step in the evolution of the light cruiser. With her ram bow, three funnels and low silhouette she bears a distinct resemblance to much later vessels. However she does not seem to have been successful in service as she was given little employment.

Modernizations

1891: - 4 x 5 - 37/17; + 8 x 1 - 88/27 SK L/30 C/89

1906: reboilered with 8 cylindrical boilers (5795hp, 19kts, 436t of coal, 3960(10)nm); - 8 x 1 - 88/27, 2 x 5 - 37/17; + 6 x 1 - 88/32 SK L/35 C/01

Naval service

After service as a mine hulk she was scrapped b 1921.
