Army river patrol craft (1953-1954)
1985
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
12 boats |
Hitzler, Regensburg: 12 boats |
1953-1954: 12 boats |
None |
None |
late 2000s: 12 boats |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 27 |
| Length, m | 25.0 |
| Breadth, m | 3.80 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 MWM RHS418A diesels |
| Power, h. p. | 440 |
| Max speed, kts | 20.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 7 |

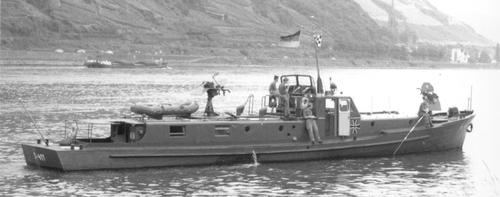

Graphics
1985
Project history
Small patrol boats. 25m class.
Modernizations
none.
Naval service
No significant events.
